US$5,100.00-6,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Processing Precision
X Axis: 0.010
Certification
GS, CE, ISO 9001
Bar Through Diameter
Φ60mm
Max. Swing Over Bed
Φ250mm
Max. Swing Over Carriage
φ130mm
Max Length of Processing
Chuck 120/Collet 200
Max. Travel of X/Z Axis
280mm
Range of Spindle Speed
50~2500rpm
X/Z Axis Fast Moving Speed
6000/8000mm/Min
X/Z Axis Positioning Accuracy
0.010/0.015mm
X/Z Axis Repositioning Accuracy
0.0075/0.015mm
Power of The Main Drive Motor
4kw
Transport Package
Wooden Case
Production Capacity
1000/Year
Packaging & Delivery
Package Size
500.00cm * 240.00cm * 255.00cm
Package Gross Weight
19000.000kg
Product Description
Product Description

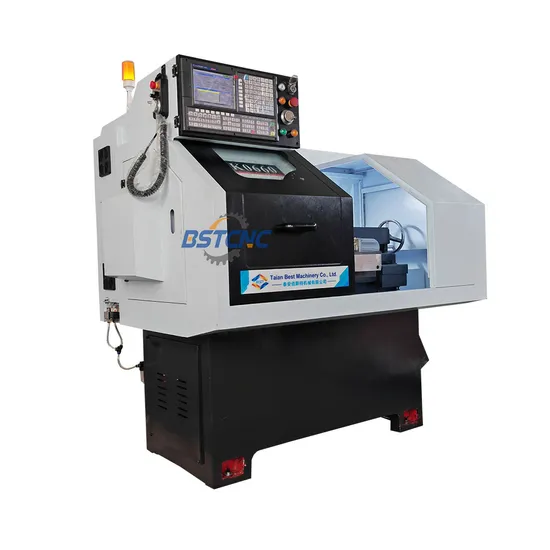

Small cnc lathe machine for auto parts processing CK0660 uses the design of mechanical and electrical integration,generous appearance beautiful,reasonable structure,easy operation. It can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
Standard configuration :
1-With GSK928 Control System ;
2-With Pneumatic collet ;
3-With Gang type tool post ;
4-With Cooling device;
5-With Automatic lubrication system and Lighting system;
|
Optional configuration :
-Control system: Siemens 808D ,Fanuc 0i-TF, KND..
-Hydraulic chuck , Pneumatic chuck ;
-4 station electric tool post ;
-6 station electric tool post ;
-Manual tailstock;
-42 type oil bar feeder;
-Independent power head;
|
Product Parameters
| Items | Unit | CK0640 | CK0660 | CK0680 |
| Spindle bore | mm | Φ48 | Φ70 | Φ90 |
| Bar through diameter | mm | Φ40 | Φ60 | Φ80 |
| Max. swing over bed | mm | Φ250 | Φ250 | Φ250 |
| Max. swing over carriage | mm | φ100 | φ130 | φ100 |
| Max length of processing | mm | Chuck 120/Collet 200 | Chuck 120/Collet 200 | Chuck 120/Collet 200 |
| Max. Travel of X/Z axis | mm | 280 | 280 | 280 |
| Spindle nose | | A2-5 | A2-5 | A2-5 |
| Bed width | mm | 260 | 260 | 260 |
| Range of spindle speed | RPM | 50~2500 | 50~2500 | 50~2500 |
| X/Z Axis fast moving speed | mm/min | 6000/8000 | 6000/8000 | 6000/8000 |
| X/Z Axis positioning accuracy | mm | 0.010/0.015 | 0.010/0.015 | 0.010/0.015 |
| X/Z Axis repositioning accuracy | mm | 0.0075/0.015 | 0.0075/0.015 | 0.0075/0.015 |
| Power of the main drive motor | KW | 4 | 4 | 4 |
| Overall dimensions(L×W×H) | mm | 1600×1000×1550 | 1600×1000×1600 | 1600×1000×1550 |
| Net weight | KG | 850 | 850 | 850 |
| Gross weight | KG | 950 | 950 | 950 |
