Excellent Quality Rubber Mixer Kneader for Rubber and Plastic

Product Description

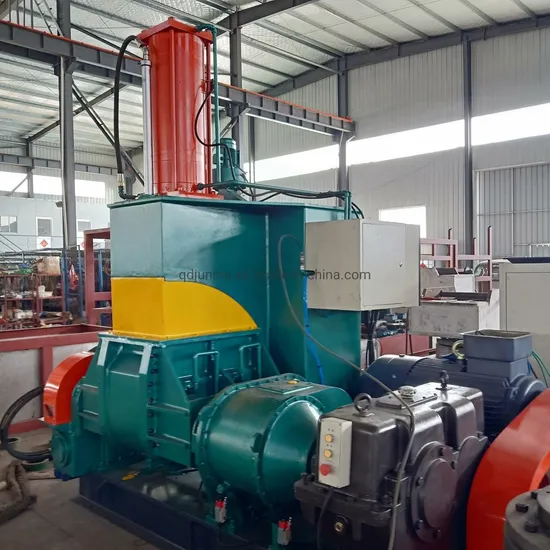

Factory Price High Quality Rubber Kneader Machine / Internal Mixer
Application:
This Rubber Kneader is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.
Construction Features:
1. With completely condition, materials are mixed or plasticizing under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent quality
2. Spiral angle and over lapping length of blades of the rotors are of reasonable design and make the materials to be dispersed uniformly
3. Rubber Kneader surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant
4. Jacket construction is adopted in rubber kneader parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.

Item	Unit	X(S)N-35x30	X(S)N-55x30	X(S)N-75x30	X(S)N-110x30	X(S)N-150x30	X(S)N-200x30
Total Volume of Mixing Chamber	(L)	75	125	170	250	325	440
Working Volume of Mixing Chamber	(L)	35	55	75	110	150	200
Driving Motor Power	(KW)	55	75	110	185	220	280
Titling Motor Power	(KW)	2.2	2.2	4	5.5	11	11
Rotational Speed of The Rotor (front/rear)	(r/min)	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	(m³/min)	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥4.0
Pressure of Cooling Water (mixing rubber)	(MPa)	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam (plastic mixing	(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions (L x W x H)	(mm)	3200x1900x2950	3230x1927x2958	3325x2615x3150	4075x2712x3580	4250x2750x4106	4250x3400x4215
Gross Weight	(t)	~6.3	~7.1	~9.5	~14.9	~19.5	~22.5

FAQ

1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information.
Welcome to visit our factory!

---
