4FT Rotary Cutting Machine Log Debarker Veneer Making Machine Veneer Peeling Line

Product Description

Product Overview
veneer peeling lathe Overview: The Veneer Peeling Machine is a piece of equipment used in the woodworking industry to peel veneers from logs of wood. It uses a rotating blade to slice the wood into thin, uniform sheets that can be used for various purposes, such as furniture, flooring, and decorative paneling. This machine is designed for efficiency, speed, and accuracy, allowing woodworkers to produce high-quality veneers with ease.
Features:
• High-speed peeling: The machine can peel veneers at a high speed, ranging from 30 to 60 meters per minute, depending on the model.
• Precision cutting: The machine uses a precision blade that ensures uniform thickness and smoothness of the veneers, resulting in high-quality end products.
• Automatic log centering: The machine automatically centers the logs, ensuring that the veneers are sliced evenly and without any waste.
• Easy operation: The machine is easy to operate and requires minimal training, making it suitable for both large-scale and small-scale operations.
• Safety features: The machine is equipped with safety features, such as emergency stop buttons, safety guards, and sensors that prevent the machine from operating if any safety issues are detected.
The veneer machine is made according to your log diameter , length and veneer thicness . It is one of the main equipment for producing plywood. The veneer peeling machine is divided into a spindle veneer peeling machine,
and a spindle-less veneer peeling machine. The spindle veneer peeling machine is suitable for use with large diameter wood and the

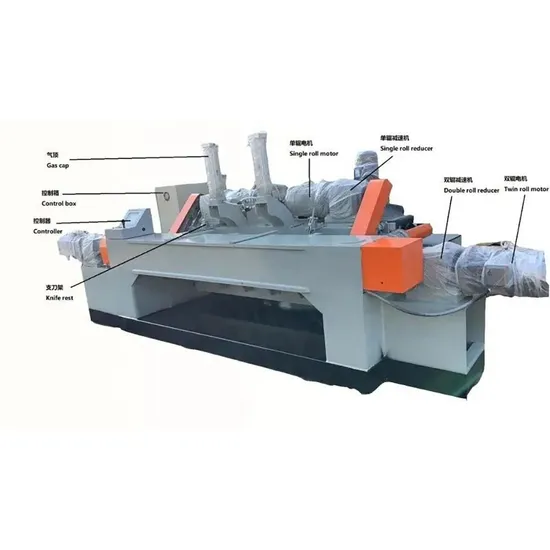

spindle-less veneer peeling machine for small diameter wood. Detailed Photos

PRODUCT SPECIFICATIONS

Model	LDP2700-550	LD1500mm-550
Max Length of log	2600mm	1300mm
Max Diameter of log	550mm	600mm
Min Diameter of log	80mm	80mm
Speed	45m/min	45m/min
Blade size	2700*180*16mm	1500*160*13mm
Total Power (24KW )	Double Roller Motor Φ150mm ,11KW Single Roller Motor Φ150mm , 7.5KW Hydraulic Motor 5.5KW	Double RollerΦ200mm/ Motor ,11KW Single RollerΦ180mm/ Motor ,7.5KW Hydraulic Motor , 5.5KW
Overall size	5200*2200*1100mm	3500*2250*1450mm
Weight	About 5000KGS	About 3500KG

Related Product



Company Profile
Our Advantages
Pre-sale service:
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.

---
