USB2.0 1080P UVC Camera Board Camera Module for Windows, Linux, Android and Mac OS

Product Description

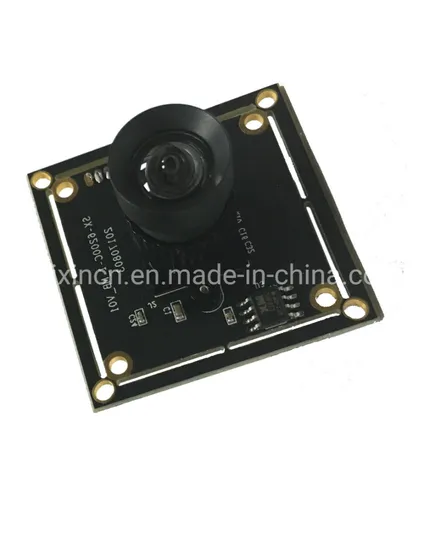

2.0 Megapxiels HD USB 2.0 Imaging Board Camera (SX-6200HA)
*Wide VGA-2Megapixels: Large field of view, smaller defect detection and improved precition
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects
Specifications:

Module NO.	SX-6200HA
Module Size	38*38mm/32*32mm
Resolution	1920*1080
Image Sensor	1/2.7"
Pixel Size	3µm*3µm
Focus	Fix
Frame Rate	30 fps for1080P; 60 fps for720P; 120 fps for VGA;
PCB printing ink	BLACK
Video Output	USB 2.0
Power	USB BUS power
Power consumption	1W
Operating system request	Win 2000,Win XP,Win 7,Win 8
Assembly technique	SMT (ROSH)
S/N Ratio	39dB
Dynamic Range	69dB
AGC/AEC/Whiter balance	Auto
Output Formats	YUV/MJPG
F/No	3.4mm
FOV	70°
Temperature (Stable Image)	0°C to 50°C
Temperature (Operation)	-20°C to 70°C

With Dome Case and 10 meters USB Cable:
Certificates:
Factory:
Thanks for utilizing our USB ATM Camera, with wide angle lens, board lens and pinhole lens optional, computer controllable.
System requirement: WinXP, Win7, Win8, Win VISTA, Win10, and Linux.
Support WDM, VFW, TWAIN, UVC protocol.

---
