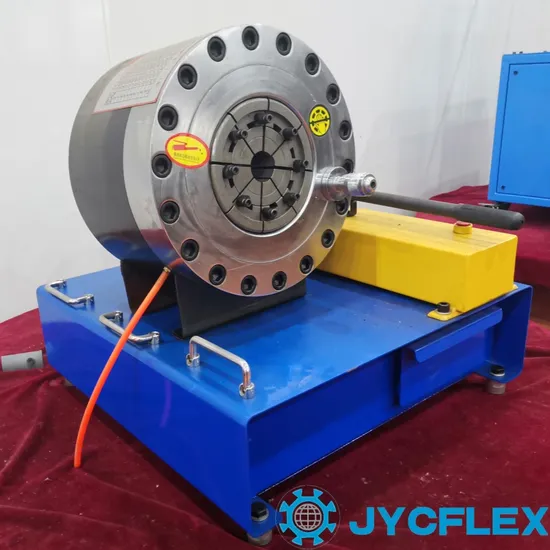

Hand Used Finn Power Hydraulic Press Rubber Manual Hose Crimper Machine Hydraulic Hose Crimping Machine

Product Description

Feature:
1.Nice appearance,Super light weight with stable performance, Low noise and easy to operate.
2.Imported brand-name oil pump with excellent accessories
3.The light is on when crimped to the pre-size
4.The hardness of the die base and die sets is high, to ensure the long service life.
5.Excellent quality and competitive price.
Product Description

SPECIFICATIONS of good factory price manual hydraulic hose crimping machine
Crimping Range	6mm to 51mm(1/4" to 1")
Quantity of dies	6 Sets
Accuracy	0.01mm
Volume of oil tank	5L
System Pressure	31.5Mpa
Dies number	14,16,19,23,27,31
The max open tolerance	±30mm
Machine Dimension	565*480*400mm
Net Weight	35kg

Main Features of 1/4" to 1" hose crimping machine rubber pipe making machine
1)Hydraulic cylinder and piston are all made of integrative precise steel casting. Comparing with welding technique, the hydro cylinder and piston will not transform when they are made. Pistons and moulds are driven to move by hydraulic power, so they have the advantage of stability and high speed, and avoid the mould locking phenomenon happens. The hydro cylinder locking systems is designed scientifically, so it is easy to withhold various anomalous connector bends.
2)Our crimping machine have two overflow valve. The high pressure overflow valve works when pipes are crimped. High pressure overflow valve could ensure the heavy pressure and high quality products, The low overflow valve works when molds are opened. Low pressure overflow valve could avoid oil seal bearing heavy pressure ,so as to increase its life period.
3)The base has two slope , to make sure that the pressure is homogeneous, the every part of the product has the same pressure, the lines of product have the equal gap, and there are no symmetry phenomenon,
4)Good quality alloy steel material and particular hear-treatment technique are used in order to ensure the permanent mechanical accuracy and life period of crimping machine. The life period of crimping machine has business with material, heat-treatment, mechanical processing, assembly and reasonable structure.Detailed Photos
Crimping
head
--
Use 40CrV,Hardness of the cylinder and front cover HRC59-63.
Max opening:114mmOperating
Arm
--
We can crimp 1/4-1 inch hydraulic hose.We also have 1.1/2 inch and 2 inch manual machine,if you need,please contact with us.Micro-
meter
--
Limit valve. Rotary positioning,scale adjustment,high pressureSpare
parts
--
We prepare extra spare parts to replace and repair the machine.
Hydraulic hose crimping machine Application
E51 hose crimping machine is ideal for crimping 51mm 4spiral hose.
Digital touch screen operation panel, simple operation and high accuracy.
With large working stroke, even elbow fitting can be crimped.Finn power style hose crimper.
All parts are imported from famous brand,durable operating performance.
With quick change tool, that will definately release your hands and imporve your working effieiceny.
With dies rack, dies could be kept and picked up or equipped very quickly.Company Profile
-Our factory has 20 years of production experience and 8 years experience of export.
-In the long term foreign trade business practice,we have a good business reputation,smooth public relations,experienced personnel and rich information channels.
Production Show
Certifications
CE certificate .Verified by world-leading inspection company.
Customers and Reviews
Packaging & Shipping

FAQ
Q1 : Are you factory ?A1: Yes, We are factory direct sales, can also provide CE certificate.
Q2:Do you have the machine in stock?A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3:Could you customize the voltage?A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong; If your machine cann''t work,please contact us,we will help you fix it or send you some spares.Q5 : Could you customize dies molds?A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.Q6:Does the machine operate easily?A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.Q7:Can you produce product with my own brand?A7. Yes, it''s available except famous brand which are not allowed.
Q8:Could you customize color for me?A8: Yes,we can customize the color regarding your requirement.

---
