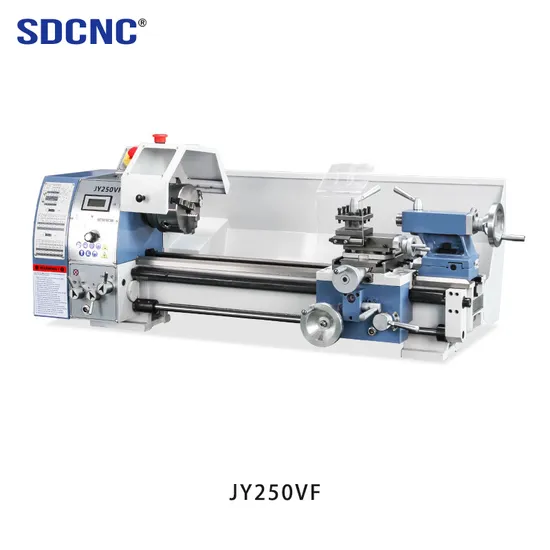

Small Metal Lathe Household Machine DIY Bench Lathe Mini Eyelet Machine Jy250vf

Product Description

CE High precision mini /small manual metal lathe JY250G
6 speed gear change (AC asynchronous motor) with double screw lead
Product Parameters

Specifications	JY250VF
Max. swing over bed	250mm
Distance between centers	550mm (optional 750mm)
Max. swing over cross slide	150mm
Spindle bore	26mm
Spindle taper	MT4
Range of spindle speed	50-2000rpm
Step of spindle speed	variable
Range of metric threads	18kinds (0.2-3.5rpm)
Range of imperial threads	18kinds (8-56TPI)
Top slide travel	70mm
Cross slide travel	115mm
Tailstock quill travel	70mm
Taper in tailstock spindle	MT2
Motor power	750W
Packing size	1320*570*610mm
N.W/G.W	120/140kg

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.

---
