PP HDPE Monofilament Yarn Extruder Machine for Fishing Rope

Product Description

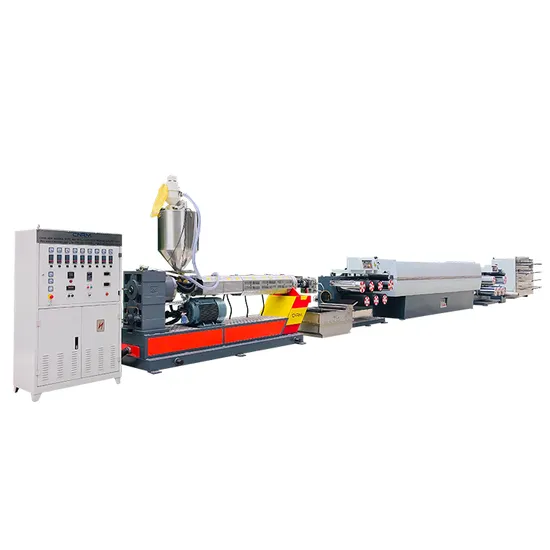

PP/PE monofilament extruder
Performance & Advantage:
Screw and barrel are made of nitride steel 38 CrMoAl with special hardening, has good corrosion resistance and wear resistance,longer life
AC Inverter & Motor can synchronize the entire extruder
Latest technology used for force the melt into the die very effectively
Take up small area
Easy operation
High output capacity
Technical data

Item	HDYSJ-70*33	HDYSJ-80*33	HDYSJ-90*33
Screw	70mm	80mm	90mm
Fiber Diameter	0.13-0.35mm	0.13-0.35mm	0.13-0.35mm
Fiber Type	PP/PE/HDPE Monofilament Yarn for making rope or net
Ratio of L/D	33	33	33
Rotation Speed of Screw	20-90r/min	20-90r/min	20-90r/min
Drawing Ratio	4-10	4-10	4-10
Cooling Mode	Water Cooling	Water Cooling	Water Cooling
Power Consumption	100KW/65KW	130KW/80KW	150KW/100KW
Max Output capacity	1200KG/24H	2000KG/24H	3000KG/24H
Machine Weight	10 Tons	12 Tons	15 Tons
Machine Dimension(L*W*H)	20*3*2.5M	23*3*2.5M	27*3*2.5M

Company info: Taian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
Our service
Our certification:
Contact :Amy Shandong Haidai Intelligent Machinery Co.,ltd
Add: Nianhua NO.3 Road,Shengzhuang Industrial Park , Taian City, Shandong, China
Cell/WA: +86 17528939588

---
