Product Description
Product Description

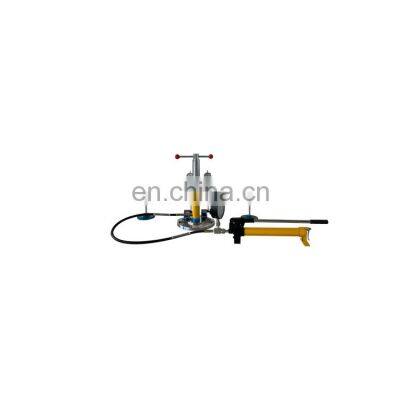

Product Usage and Features K30 Plate load testerAPPLICATION:The Plate Load Tester is a field equipment for determining the ultimate bearing capacity of soil and the likely settlement under a given load. The Plate Load Tester applies a load on a steel plate placed at the foundation level and recording the settlements corresponding to each load increment. It’s kind of common road testing equipment. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil. BASIC STRUCTURE: 1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate. 2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.ParametersProductK30 Plate load testerStraight through load plate300mmJack stroke120mmSpan of side bridge3000mmPressure test range25MPa (level 0.4)Displacement test range0-10mmApplicable temperature5°-45°CDetailed ImagesApplicationContact USCangzhou Lovely Technology Co., Ltd. Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years.With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide. Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Q1:Are you a factory or trading company? A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement. Q2:Where is the nearestloading port? A:Qingdao port or Tianjin port. Q3:What’s the MOQ of the product? A: One set. Q4:Did your factory pass the ISO 9001?A: YES. Q5:How long is the production cycle after ordering? A:Based on the order. Generally it is about 3-10 days. Q6:What is the payment method? A:T/T payment, West Union, L/C payment ect. Q7: Do you support customizing service? A: Yes, we could customize theout package, machine's color, Logo and Voltage as request.
>>
