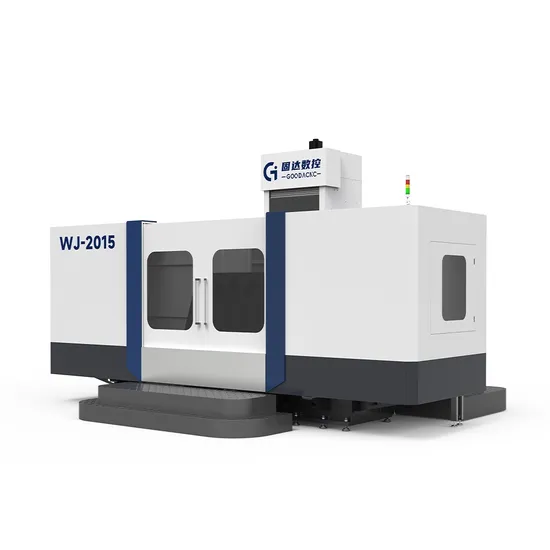

Heavy-Duty 3/4/5 Axis CNC Horizontal Machining Center Metalworking CNC Machine Tool

Product Description

Main Features
GooDa Horizontal Machining Center WJ-Series adopts an ultra-large size inverted "T" type bed base, and the Y-axis adopts a double-layer wall moving column structure with high rigidity and durability, suitable for heavy-duty cutting, roughing, semi-finishing applications.
To enhance the roughing function, a customized thicken spindle is adopted, standard with a 22 kW high-torque motor, suitable for precision molds, engineering machinery, automotive, locomotives, ships, marine engineering, and other industries.
Core Components
Bed & Base
The inverted "T" type bed structure ensures that the machine tool has sufficient rigidity and stability during operation, reduces machine tool vibration, and improves tool life.
Head
2 extended heavy-duty 55# roller linear guides ensure high resistance to vibrations. The spindle box has a nitrogen balance system to improve the machine tool dynamic response speed.
Spindle
Increased spindle sleeve diameter enhances the cutting rigidity, with spindle RPM reaching up to 3000rpm/6000rpm. The spindle is equipped with a cooling system to ensure long-term stable operation.
Z-axis
The Z-axis motion is the entire movement of the column. The rigidity of the Z-axis and the spindle head remains consistent throughout the full travel of the Z-axis, reducing tool vibration during deep cavity machining.
Protection Cover
The machine is equipped with a semi enclosed protective cover to enhance safety.
Column
The Y-axis adopts a double-layer wall moving column structure, made of high-quality HT-300 cast iron with secondary annealing treatment, ensuring deformation resistance, excellent accuracy and stability, and long service life.
Applications
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Product Parameters

Model	WJ-2015
Category	Attribute	Value	Unit
X/Y/Z-axis	X/Y/Z travel	2000*1500*850	mm
	X/Y/Z Rapid feed rate	10/10/10	mm/min
	X/Y/Z Max. cutting feed rate	8/8/8	mm/min
Worktable	Worktable size	2000*1300	mm
	Max. load capacity	15000	KG
Accuracy	Positioning accuracy	0.02/1000	mm
	Repe at positioning accuracy	0.015/1000	mm
Oil tank capacity	Lubrication oil tank	4	L
Power requirement	Rated voltage	AC380V±10%	V
	Total power	50	KW
	Air pressure	0.6-0.8	Mpa
Size & weight	Machine net weight	20000	KG
	Machine space	5000*5355	mm

Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
