Product Description
Product Description

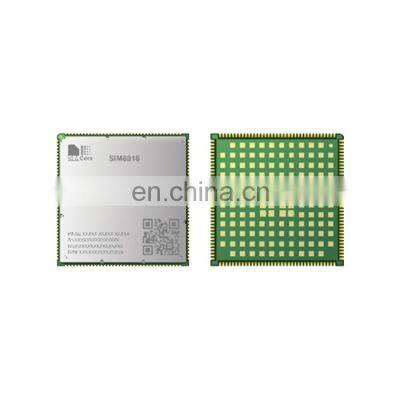

DescriptionSIM8918-Series● The SIM8918 series is the LTE Cat 4 smart module with Android system, it adopts Qualcomm 4-core 64-bit ARM Cortex-A53 processor, with frequency up to 2.0GHz and AdrenoTM 702 GPU. It supports multiple high resolution camera and single screen display, and has powerful high data transfer and multimedia processing capability. With smart module operation system and high performance advantage, the module is ideal for rapid development of multimedia wireless communication products and applications.● The SIM8918 series highly integrates wireless communication, short distance communication and multiple satellite positioning receiver function. It supports multiple communication modes such as GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD and LTE-TDD. It supports GNSS multi-mode satellite positioning and short distance communication including Wi-Fi 802.11 a/b/g/n/ac and BT5.0.● The SIM8918 series has abundant interfaces, it can be connected with camera, display screen, audio, sensors and other equipments. It supports multi-dimensional data collection and man-machine interaction. The interfaces including MIPI_DSI/CSI/UART/SPI/I2C/GPIO/USB greatly expand smart module applications, and make the module suitable for smart POS, advertising media, automotive electronics, smart diagnostics, smart security devices and industry.Product Advantages● 4-lane MIPI_ DSI(up to 1680*720 @60fps)● 2x ISP (13 MP + 13 MP or 25 MP) at 30 fps ZSL● Support recording and playback of 1080P videos at 30fps● Support global multi network mode (LTE Cat 4)● Integrates Android OS, Wi-Fi, Bluetooth and GNSS into one module● Integrate GNSS function, supports rapid accurate positioning under different environmentLTE CAT4SIM8918CESIM8918ESIM8918EAPackageLCC+LGALCC+LGALCC+LGADimensions40.5*40.5*2.85(mm)40.5*40.5*2.85(mm)40.5*40.5*2.85(mm)CPUQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzGPU Adreno 702 GPU Adreno 702 GPU Adreno 702 GPUMemory8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4X8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4X8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4XSupply Voltage3.4V ~ 4.4V3.4V ~ 4.4V3.4V ~ 4.4VTemperature-35 °C ~ +75 °C-35 °C ~ +75 °C-35 °C ~ +75 °CWeightApprox. 10.5gApprox. 10.5gApprox. 10.5gFrequency BandsLTE-FDDB1/B3/B5/B8B1/B3/B5/B7/B8/B20/B28B1/B2/B3/B4/B5/B7/B8/B20/B28LTE-TDDB34/B38/B39/B40/B41B38/B40/B41B38/B40/B41WCDMAB1/B8B1/B5/B8B1/B2/B4/B5/B8GSM900/1800 MHz850/900/1800 MHz850/900/1800/1900 MHzWLAN2.4G/5G Hz 802.11 a/b/g/n/ac2.4G/5G Hz 802.11 a/b/g/n/ac2.4G/5G Hz 802.11 a/b/g/n/acBTBT5.0BT5.0BT5.0GNSSBeidou/GPS/GLONASS orGPS/BeiDou/GalileoBeidou/GPS/GLONASS orGPS/BeiDou/GalileoBeidou/GPS/GLONASS orGPS/BeiDou/GalileoData TransferLTE(Mbps)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)HSPA+(Mbps)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)WCDMA(Kbps)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)GSM(Kbps)107(DL)/85.6(UL)107(DL)/85.6(UL)107(DL)/85.6(UL)Media & Software FeatureUSB DriveMicrosoft Windows 2000/XP/Vista/Win7/Win8/Win10/LinuxOperating SystemAndroid 11/12Video encoding and decodingEncode：1080p 30fps(H.264,MPEG4,H.263) Decode：1080p 30fps(H.264,MPEG4,VP8)Encode+Decode：1080p 30 decode + 720p 30 encodAudio encoding and decodingVoice codec:EVS, EVRC, EVRC-B, EVRC-WB G.711 and G.729A/AB GSM-FR, GSM-EFR, and GSM-HR AMR-NB and AMR-WBAudio codec:MP3; AAC; HE AAC v1, v2; FLAC; APE; ALAC; AIFFirmware UpgradeUSB/OTA/TF cardInterfaceLCMOne 4-Lane MIPI_DSI interface, the highest resolution is 720*1680, HD+CameraMIPI_CSI * 2 ; Primary camera:4-lane MIPI_CSI, up to 13MP ; Secondary camera: 4-lane MIPI_CSI, up to 13MPUIM CardSupport Dual Card Dual Standby: 1.8V/3.0V Dual Voltage AdaptiveUARTSupport up to 3 Serial PortsUSBUSB 3.1/2.0 ，Support Type-C，USB OTGAudio3 input & 3 output ; 4-Channel Digital Microphone InputADC*1 16bits ADCGPIO≥ *25SD CardSDC2 external interface supports SD3.0 TF card (Maximum 256G), hot-join supportSPISupport up to 2*SPI interfaces, support master mode, the highest rate 50MHzI2CSupport up to ten I2C for touch screen, camera, sensor and other peripheralsI2S*2AntennaMain & Diversity & GNSS & Wi-Fi/BTCertificationCertificationRoHS/REACH /CCC/SRRC*RoHS/REACH/CE*RoHS/REACH/CE*LTE CAT4SIM8918SASIM8918NA*SIM8918WPackageLCC+LGALCC+LGALCC+LGADimensions40.5*40.5*2.85(mm)40.5*40.5*2.85(mm)40.5*40.5*2.85(mm)CPUQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzQCM2290, 4 core 64-bit ARM Cortex-A53 CPU @ 2.0 GHzGPU Adreno 702 GPU Adreno 702 GPU Adreno 702 GPUMemory8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4X8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4X8GB eMMC + 1GB LPDDR316GB eMMC + 2GB LPDDR4XSupply Voltage3.4V ~ 4.4V3.4V ~ 4.4V3.4V ~ 4.4VTemperature-35 °C ~ +75 °C-35 °C ~ +75 °C-35 °C ~ +75 °CWeightApprox. 10.5gApprox. 10.5gApprox. 10.5gFrequency BandsLTE-FDDB1/B2/B3/B4/B5/B7/B8/B28/B66B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71-LTE-TDDB40B41-WCDMAB1/B2/B5/B8B2/B4/B5-GSM850/900/1800/1900 MHz-WLAN2.4G/5G Hz 802.11 a/b/g/n/ac2.4G/5G Hz 802.11 a/b/g/n/ac2.4G/5G Hz 802.11 a/b/g/n/acBTBT5.0BT5.0BT5.0GNSSBeidou/GPS/GLONASS orGPS/BeiDou/GalileoBeidou/GPS/GLONASS orGPS/BeiDou/GalileoBeidou/GPS/GLONASS orGPS/BeiDou/GalileoData TransferLTE(Mbps)150(DL)/50(UL)150(DL)/50(UL)150(DL)/50(UL)HSPA+(Mbps)42(DL)/5.76(UL)42(DL)/5.76(UL)42(DL)/5.76(UL)WCDMA(Kbps)384(DL)/384(UL)384(DL)/384(UL)384(DL)/384(UL)GSM(Kbps)107(DL)/85.6(UL)107(DL)/85.6(UL)107(DL)/85.6(UL)Media & Software FeatureUSB DriveMicrosoft Windows 2000/XP/Vista/Win7/Win8/Win10/LinuxOperating SystemAndroid 11/12Video encoding and decodingEncode：1080p 30fps(H.264,MPEG4,H.263) Decode：1080p 30fps(H.264,MPEG4,VP8)Encode+Decode：1080p 30 decode + 720p 30 encodAudio encoding and decodingVoice codec:EVS, EVRC, EVRC-B, EVRC-WB G.711 and G.729A/AB GSM-FR, GSM-EFR, and GSM-HR AMR-NB and AMR-WBAudio codec:MP3; AAC; HE AAC v1, v2; FLAC; APE; ALAC; AIFFirmware UpgradeUSB/OTA/TF cardInterfaceLCMOne 4-Lane MIPI_DSI interface, the highest resolution is 720*1680, HD+CameraMIPI_CSI * 2 ; Primary camera:4-lane MIPI_CSI, up to 13MP ; Secondary camera: 4-lane MIPI_CSI, up to 13MPUIM CardSupport Dual Card Dual Standby: 1.8V/3.0V Dual Voltage AdaptiveUARTSupport up to 3 Serial PortsUSBUSB 3.1/2.0 ，Support Type-C，USB OTGAudio3 input & 3 output ; 4-Channel Digital Microphone InputADC*1 16bits ADCGPIO≥ *25SD CardSDC2 external interface supports SD3.0 TF card (Maximum 256G), hot-join supportSPISupport up to 2*SPI interfaces, support master mode, the highest rate 50MHzI2CSupport up to ten I2C for touch screen, camera, sensor and other peripheralsI2S*2AntennaMain & Diversity & GNSS & Wi-Fi/BTCertificationCertificationRoHS/REACHRoHS/REACH/FCC*/GCF*/PTCRB*/IC*RoHS/REACH/3C*Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC
>>
