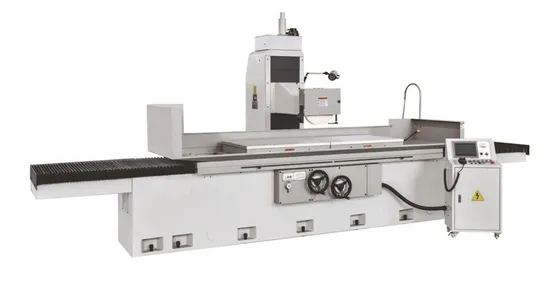

Sgc715ahd/Sgc720ahd/Sgc820ahd Precision Molding Surface Grinder

Product Description

SGC715AHD/SGC720AHD/SGC820AHD Precision Molding Surface Grinder
Technical Parameters:

Model No.	SGC715AHD	SGC720AHD	SGC820AHD
Item No.
Processing capacity
Table size	1500X700 mm	2000X700 mm	2000X800 mm
Max. Grinding Length	1600 mm	2140 mm	2140 mm
Max. Grinding Width	760 mm	760 mm	860 mm
Distance from table surface to spindle center	600 mm (900 op)	600 mm (800 op)	600 mm (900 op)
Maximun work load	1500 kgs	1500 kgs	1500 kgs
Table
Number of T-slot	16x3 mmxN	16x3 mmxN	16x3 mmxN
Table speed	7-25 m/min	7-25 m/min	7-25 m/min
Front and rear hand wheel feed	1 frame 0.02 mm	1 frame 0.02 mm	1 frame 0.02 mm
	1 circle 5 mm	1 circle 5 mm	1 circle 5 mm
Front and rear automatic feed	0.5-12 mm	0.5-12 mm	0.5-12 mm
Fast forward and backward movement	50HZ 1250 mm/min	50HZ 1250 mm/min	50HZ 1250 mm/min
	60HZ 1500mm/min	60HZ 1500mm/min	60HZ 1500mm/min
Wheel
Wheel size(dia x width x bore)	Ø400x20-50x127 mm	Ø500x20-50x127 mm	Ø500x20-50x127 mm
Spindle speeds (60C/50C)	50HZ 1450 mm/min 60HZ 1740mm/min	50HZ 1450 mm/min 60HZ 1740mm/min	50HZ 1450 mm/min 60HZ 1740mm/min
Up and down mechanism
Up and down the handwheel feed	1 frame 0.002 mm	1 frame 0.002 mm	1 frame 0.002 mm
	1 rotary 0.5 mm	1 rotary 0.5 mm	1 rotary 0.5 mm
Automatic feed	0.005-0.04 mm	0.005-0.04 mm	0.005-0.04 mm
Motor
Rapid up and down movement	230 mm	230 mm	230 mm
Spindle motor	10x4 HP	15x4 HP	15x4 HP
Up and down the drive motors	1/2x4 w	1/2x4 w	1/2x4 w
Hydraulic motor	7.5x6 HP	7.5x6 HP	7.5x6 HP
Cooling motor	1/8x2 NM	1/8x2 NM	1/8x2 NM
Front and rear drive motor	1/4x6 HP	1/4x6 HP	1/4x6 HP
Other
Machine height	2400 mm	2400 mm	2400 mm
Floor area	5810x2800 mm	7200x2500 mm	8200x2700 mm
Net/Gross weight	8000kgs/9000kgs	8800kgs/10000kgs	9800kgs/11000kgs
Item No.
Processing capacity
Table size	1500X700 mm	2000X700 mm	2000X800 mm
Max. Grinding Length	1600 mm	2140 mm	2140 mm
Max. Grinding Width	760 mm	760 mm	860 mm
Distance from table surface to spindle center	600 mm (900 op)	600 mm (800 op)	600 mm (900 op)
Maximun work load	1500 kgs	1500 kgs	1500 kgs
Table
Number of T-slot	16x3 mmxN	16x3 mmxN	16x3 mmxN
Table speed	7-25 m/min	7-25 m/min	7-25 m/min
Front and rear hand wheel feed	1 frame 0.02 mm	1 frame 0.02 mm	1 frame 0.02 mm
	1 circle 5 mm	1 circle 5 mm	1 circle 5 mm
Front and rear automatic feed	0.5-12 mm	0.5-12 mm	0.5-12 mm
Fast forward and backward movement	50HZ 1250 mm/min	50HZ 1250 mm/min	50HZ 1250 mm/min
	60HZ 1500mm/min	60HZ 1500mm/min	60HZ 1500mm/min
Wheel
Wheel size(dia x width x bore)	Ø400x20-50x127 mm	Ø500x20-50x127 mm	Ø500x20-50x127 mm
Spindle speeds (60C/50C)	50HZ 1450 mm/min 60HZ 1740mm/min	50HZ 1450 mm/min 60HZ 1740mm/min	50HZ 1450 mm/min 60HZ 1740mm/min
Up and down mechanism
Up and down the handwheel feed	1 frame 0.002 mm	1 frame 0.002 mm	1 frame 0.002 mm
	1 rotary 0.5 mm	1 rotary 0.5 mm	1 rotary 0.5 mm
Automatic feed	0.005-0.04 mm	0.005-0.04 mm	0.005-0.04 mm
Motor
Rapid up and down movement	230 mm	230 mm	230 mm
Spindle motor	10x4 HP	15x4 HP	15x4 HP
Up and down the drive motors	1/2x4 w	1/2x4 w	1/2x4 w
Hydraulic motor	7.5x6 HP	7.5x6 HP	7.5x6 HP
Cooling motor	1/8x2 NM	1/8x2 NM	1/8x2 NM
Front and rear drive motor	1/4x6 HP	1/4x6 HP	1/4x6 HP
Other
Machine height	2400 mm	2400 mm	2400 mm
Floor area	5810x2800 mm	7200x2500 mm	8200x2700 mm
Net/Gross weight	8000kgs/9000kgs	8800kgs/10000kgs	9800kgs/11000kgs

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
