Welcome to visit

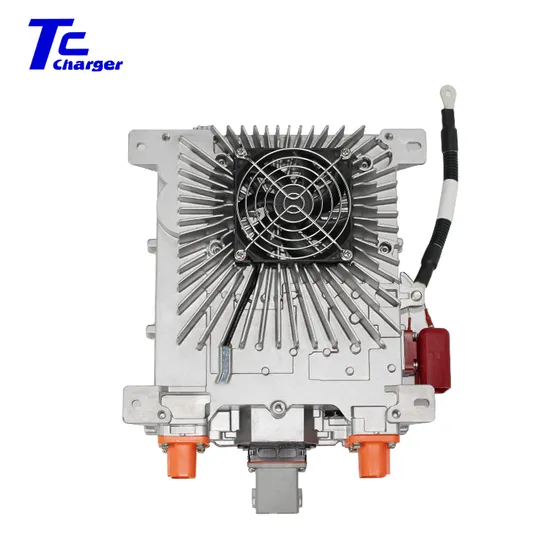

Tc Charger Integrated Obc and Dcdc for Electric Vehicle on Board Charger IP67 Fan-Looled 3.3kw+1kw Obc+Dcdc Converter 2 in 1

US$665.00
1-20 Pieces
US$589.00
21-99 Pieces
US$532.00
100+ Pieces

Basic Info.

Model NO.
CD-MF05
Usage
Electric Vehicle Charging
Interface
Other
Color
Other
Input Voltage
AC90V~264V
Product Name
2 in 1 Obc+Dcdc
Charger/DC Power
3.3kw/1kw
VAC-DC Output Votage (V)
312V
Output Voltage Range
200~450V
VAC-DC Output Current(a)
10A
VAC-DC/DC-DC Model
HK-Mf-312-10/Tdc-Iy-320-12
DC Input Votage(V)
320
DC Input Current(a)
3.5
Max Input Current(a)
6.2
DC-DC Output Votage (V)
14
DC-DC Output Current(a)
72A
Baud Rates
250K or 500K
Transport Package
Carton
Specification
250(length) x 222(width) x 108.7(height)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month

Packaging & Delivery

Package Size
25.00cm * 23.00cm * 15.00cm
Package Gross Weight
5.500kg

Product Description

Model
Output voltage 		VAC-DC model
Power 		VAC-DC output votage (V) Output voltage range VAC-DC output current(A) DC-DC model
DC-DC power
CD-MF01 72V HK-MF-72-40 3.3KW 72 50-107V 35A TDC-IY-72-12 1KW
CD-MF03 108V HK-MF-108-32 3.3KW 108 80~161V 32A TDC-IY-108-12 1KW
CD-MF04 144V HK-MF-144-23 3.3KW 144 95~202V 23A TDC-IY-144-12 1KW
CD-MF05 312V HK-MF-312-10 3.3KW 312 200~450V 10A TDC-IY-320-12 1KW
Model
Type of cooling 		DC input votage(V) DC input current(A) Max input current(A) DC-DC output votage (V) DC-DC output current(A) Net Weight (kgs) Gross Weight (kgs) Dimension (CM)
CD-MF01 Enforce Air Cooling 72 14 23 14 72A 5.5 6.5 40*35*21
CD-MF03 Enforce Air Cooling 108 10 17 14 72A 5.5 6.5 40*35*21
CD-MF04 Enforce Air Cooling 144 8 13 14 72A 5.5 6.5 40*35*21
CD-MF05 Enforce Air Cooling 320 3.5 6.2 14 72A 5.5 6.5 40*35*21
