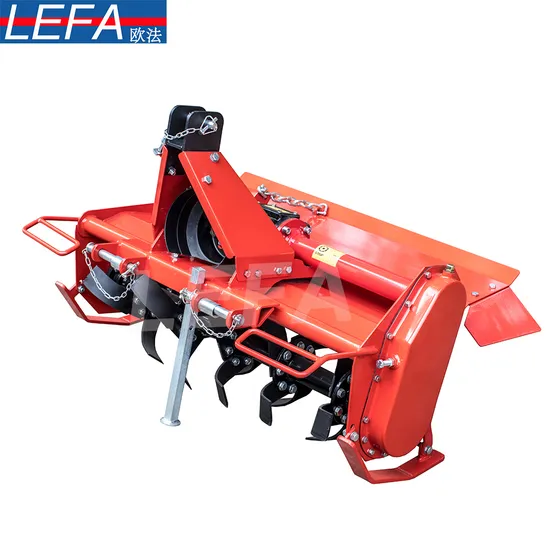

Tractor Mounted Machine Tractor Small Rotavator Tiller

Product Description

Product Description
1.3 point linkage
2.Casting iron gearbox
3.Tractor power required: 20-30hp

Mode	RT-85	RT-95	RT-105	RT-115	RT-125	RT-135
Dimension(mm)	950*550*560	1050*550*560	1150*550*560	1250*550*560	1350*550*560	1450*550*560
Working width(cm)	85	95	105	115	125	135
PTO Input speed(rpm)	540r/min	540r/min	540r/min	540r/min	540r/min	540r/min
Weight(Kg)	110kg	115kg	125kg	135kg	145kg	155kg
Number of blades	16	16	20	24	28	32
Tilling depth(cm)	8-12	8-12	8-12	8-12	8-12	8-12
Packing size(mm)	1060*650*660	1160*650*660	1260*650*660	1360*650*660	1460*650*660	1560*650*660
Power required	15-25HP	15-25HP	15-25HP	20-30HP	20-30HP	20-30HP

Detailed Photos
1. Transmission: Chain driven. 2. Gravity gearbox is made of casting iron. Material performance is better. Not easy broken. 3. The suspension plate shape is not easy to deform. 4. Chain device hand adjustable. More easy and reliable. 5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out. 6. The tilling height can be adjustable. 7. The structure is firm and stable.

Certifications
1.Professional team with rich experience
2.Powerful factory strength with CE certification
3.Best after-sales service
Packaging & Shipping
Packaging Detail: Iron pallet or wooden cases Delivery Detail: By sea or By air 1. Waterproof packing with the international export standard by 20ft, 40ftcontainer. Wooden Case or Iron Pallet. 2. The whole set of machines size are large as normal, so we will use Waterproof materials to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box.

Company Profile
Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Our company was established since 2003 with Hanma Industry Company.
Our main products include rotovator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato harvester/ planter and Japanese tractor parts, etc. Due to our super International quality standard and rapid & excellent after-sales service, LEFA machines are greatly popular in various markets around the world, and already reached to Europe, North America, South America, Australia, almost covers 80 countries in World.
LEFA always believe that we will take better farming life to you by top-quality laser cutting machine & CNC bending machine & professional paint-spraying & strong welding.
