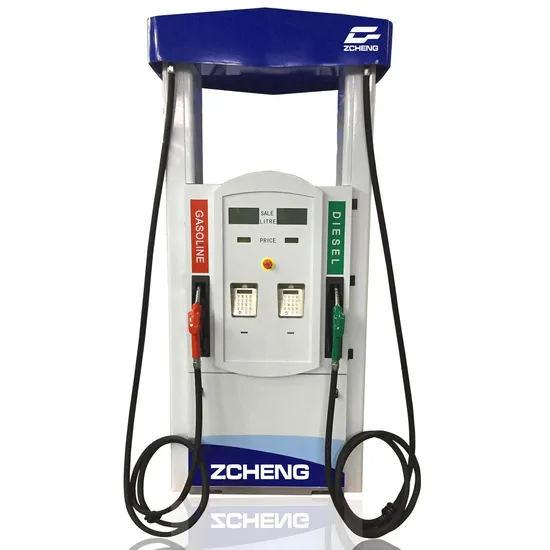

China Petrol Station Self-Serve Submersible Pump Large Flow Gilbarco Fuel Dispenser Price with Tokheim Type

Product Description

China Petrol Station Self-Serve Submersible Pump Large
Flow Gilbarco Fuel Dispenser Price With Tokheim Type Product Description

Specifications
Model	Product	Motor	Pump	Flow meter	Nozzle
ZC-11111	1	1	1	1	1
ZC-11122	1	1	1	2	2
ZC-22222	2	2	2	2	2
ZC-22244	2	2	2	4	4
ZC-33366	3	3	3	6	6
ZC-44488	4	4	4	8	8
External color, size, shape and inner structure are optional.

Technical parameter
Ambient temperature	-25°C~ +55°C
Humidity	≤90%
Flow rate	5~60L/min or 5~90L/min
Nozzle	Auto shut-off
Suction distance	6m(Vertical), 50m(horizontal)
Accuracy	±0.30%
Repeating tolerance	≤0.15%
Hose	3m(low hang), 4.5m(high hang)
Inlet pressure	≥54kPa
Outlet pressure	≤0.3MPa
Voltage	110V/220V/380V (50/60Hz)
Power	1HP(0.75kw)
Noise	≤80dB(A class)
Unit price range	0.01~999.99
Single volume range	0.01~999999.99
Accumulative volume range	0.01~9999999999.99
Ex-proof signal	ExdmbIIAT3

Why Choose Us
Company Profile
Packaging & Shipping
After Sales Service
Exhibition
Professional Team
FAQ Q1:Are you factory or trading company?
A:We are professional manufacturer for over 20 years
Q2:What kind of product do you make?
A:We produce professional fuel dispenser, LPG dispensesr, CNG dispenser,
mobile fuel dispenser, pump, flow meter, nozzle, etc.
Q3:Can you supply customized service
A:Yes.
Q4:Is that your fuel dispenser easy to operate?
A:Yes, each fuel dispenser packed together with one guide book to help
you get more info. of our fuel dispenser, guide you operate in the
correct way, and future maintain.
Q5:What can we do if we meet problem and need technical consulting?
A:Please give us detail of problem you have, any picture or video
will be more better to help us find a solution for you.

---
