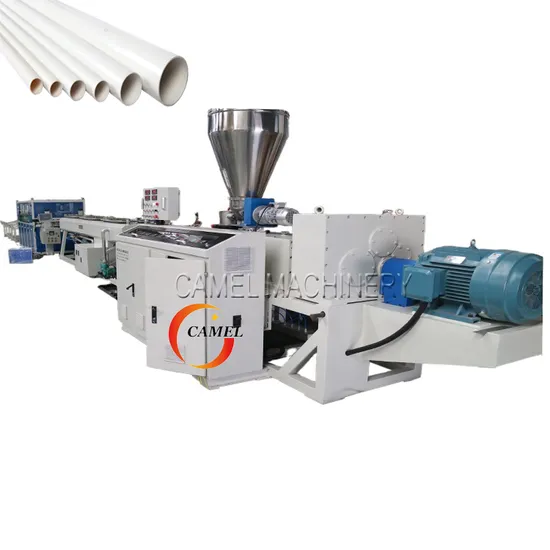

16-32mm PVC Electrical Conduit Pipe Production Extrusion Line

Product Description

Product Description
PVC Pipe Making Machine
PVC Electrical Cable Conduit Production Line
Application:
It is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc. Can manufacture U-PVC, C-PVC, O-PVC pipe according to customer's requirements

Features:
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.
The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw
extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.
Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.
The main electrics for PVC pipe extrusion machine adopt Siemens motor, ABB inverter, RKC/OMRON temperature controller.
Product Parameters

Diameter range(mm)	Extruder model	Main motor power(KW)	Capacity(kg/h)
16-40 Dual	SJSZ51/105	18.5 AC	60-120
20-63 Dual	SJSZ65/132	37 AC	150-200
20-110 Dual	SJSZ80/156	55 AC	250-350
20-63	SJSZ51/105	18.5 AC	60-120
50-160	SJSZ65/132	37 AC	200-300
75-250	SJSZ80/156	55 AC	250-350
110-315	SJSZ80/156	55 AC	250-350
160-450	SJSZ92/188	90 AC	500-600
315-630	SJSZ92/188	110 AC	600-700
500-800	SJSZ92/188 or SJSZ110/220	110 or 160	600-700 or 1000-1200

Detailed Photos
Two-cavity pvc pipe production line
Process flow:
Extruder -- Mould -- Vaccum calibrator -- Haul-off and cutting machine -- Stacker
Company Profile
Our customers
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6:380V 50hz 3 phase or any other voltage according to client's requirement.

---
