Basic Info.
Type
Coating Production Line
Core Components
PLC/ Spraying Gun
Power Supply
One Button Siemens Controller
Spray Gun
Handy or Robot Spray
Transport Package
Wood Cases
Specification
control cabinet, spraying gun, powder feeder
Production Capacity
200/Year
Product Description
Product Description
Arc spray equipment is mainly used for large-area anti-corrosion and wear of steel structure or repairing the surface of machine parts processing errors. and also spraying conductive coating.

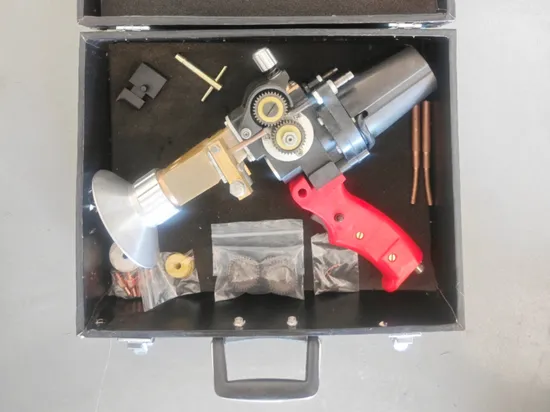

The arc spray gun can be manual operated or fixed on machine tool.
The power supply is Siemens controller with one-button operation. The wire feeding trolley is suitable for pulling arc spray equipment, which is convenient for outside large workpiece construction. The max. wire is Ø 300 ר 50 × 103mm, single wire reel is 20kg.
Detailed Photos
Product Parameters
Arc Spraying Equipment Parameters:
| Items | Parameters |
| Gun Weight | 3KG |
| Air Pressure | ≥0.5MPa |
| Air Cap Diameter | Ø 6 | Ø 7 |
| M³/min | 1.8 | 2.4 |
| Gun feeding wire Pressure | ≥8kg |
| Spraying efficiency | Ø 2 Zinc 200A | Ø 2 Alum. 200A |
| 20kg/h | 6.5kg/h |
| Current and Pressure | Spraying material | Wire size | Non-Load Voltage | Work Power |
| Zinc, Alum., Ally Copper, Carbon Steel, Stainless Steel, | Ø 1.6~Ø 2 | 35~40V | 120~200A |
| Ø 3 | 25~38V | 150~240A |
| Air Cap | Spraying material Diameter(mm) | Air Cap Dia.(mm) |
| Ø 1.6~Ø 2 | Ø 6~Ø 7 |
| Ø 3 | Ø 9~Ø 10 |
Company Profile
SHANGHAI BIANPU TECHNOLOGY CO.,LTD
We are specialized in production of all kinds of spraying equipment and the technology application for surface coating treatment for over 15 years in China. We provide professional coating technology services and automatic production of turnkey project, such as spraying equipment, spraying soundproof room, spraying auxiliary equipment, manipulators, dust collection and pretreatment sandblasting system. Our Company has a group of experienced and professional technicians in coating processing and construction of turnkey projects.
Main Equipment:
Thermal Spraying Equipment( Plasma spraying, HVOF spraying, Arc Spraying), Auxiliary Equipment( Spraying soundproof room, Dust collection system, Rotary table, Six-axis manipulator, Sandblasting system), Automatic production of turnkey project.
Coating Processing Service:
Wear-resistant, High temperature resistance, Anti-corrosion, Insulation, Magnetic inductive, Self-lubricating wear sealing, anti-stick and wear-resistant, repair coating.
