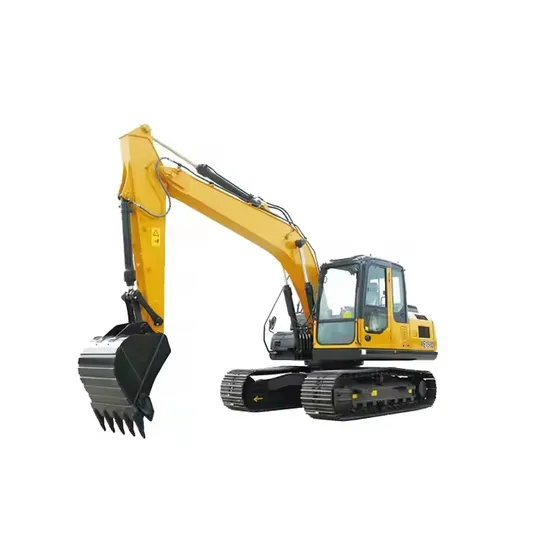

15 Ton Xe155ga Top Brand Digger Excavator Crawler Excavator with Large Backhoe

Product Description

Product Description
XE155GA is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on.It has features of good
flexibility and manoeuvr ability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
1. Original imported engine An Imported engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
2. Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
3. Hydraulic system
Original imported high-end hydraulic components are configured to match capabilities for excellent performance.
Detailed Photos
Product Parameters

Model		Metric unit	XE155GA
Operating weight		kg	14600
Bucket capacity		m3	0.32~0.72
Engine	Output power	kW/ r/min	96/2200
	torque/speed	N.m	570/1300
	Displacement	L	4.5
Main performance	Travel speed(H/L)	km/h	5.3/3.0
	Gradeability	%	35
	Rotating speed	r/min	11
	Ground pressure	kPa	37
	Bucket digging force	kN	107
	Arm crowd force	kN	80
Appearance size	Overall length	mm	7825
	Overall width	mm	2590
	Overall height	mm	2950
	Width of platform	mm	2490
	Length of crawler	mm	3648
	Overall width of chassis	mm	2490
	Width of crawler	mm	600
	Track length on ground	mm	3648
	Crawler gauge	mm	1990
	Clearance under counterweight	mm	931
	Min. ground clearance	mm	466
	Min. tail swing radius	mm	2360
Working scope	Max. digging height	mm	8620
	Max. dumping height	mm	6175
	Max. digging depth	mm	5545
	Max. vertical wall digging depth	mm	4575
	Max. digging reach	mm	8295
	Min. swing radius	mm	2445
