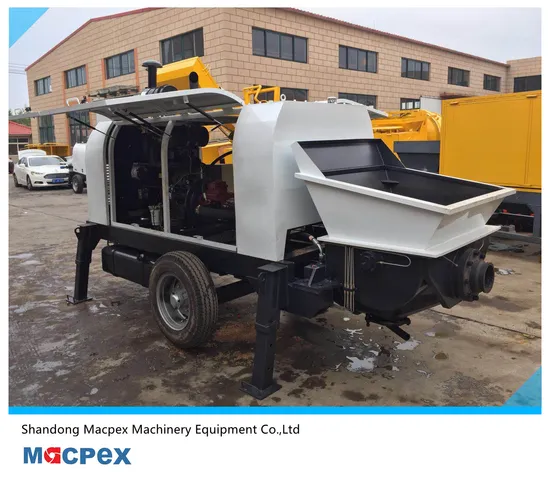

High Efficiency Concrete Pump Machine Used for High Rise Buildings Hot Sale

Product Description

Product feature:
1.Hydraulic system change direction with electrical control. It is convennient for use and maintenaince.
2.High and low pressure use a key to swichover, may swichover at any time, no leakage, no polution.
3.Electricl system adopts PLC from OMRON Japan and the other element from world famous company. The control circuitry is simle and works credibly.
4.High quality seal from PARKER company, stop the leakage in hydraulic system.
5.Cooling syetem adopts oil-air cooling device with big power.It depress the quantity of heat efficency andf ensure the reliability if hydraulic system.
Parameter:

HBTS80-16-110
Items		Units	Parameters
Whole performance of machine	Max. theo. concrete output (L./H.)	m3/h	84/50
	Max.concrete pumping pressure (H. /L.)	MPa	8-16
	Distribution valve type		S Valve
	Concrete cylinder diameter×stroke	mm	Ф200×1800
	Hopper capacity×feeding height	L×mm	800×1400
	Outlet diameter	mm	Ф180
Power system	Electrical engineering model		Y280M-4
	Electrical engineering power	kW	110
	Rotate speed	r/min	1480
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	MPa	32
	Mixing system pressure	MPa	6-8
	Capacity of oil tank	L	560
Pump range	The biggest transportation is away from vertically (/Level)	m	220/1000
Other parameters	Max. aggregate diameter	mm	Slick scree: 50,
	Inside diameter of delivering pipe	mm	Ф125
	Dimensions:length×width×height	mm	6000×2100×2250
	Total weight	kg	6300

---
