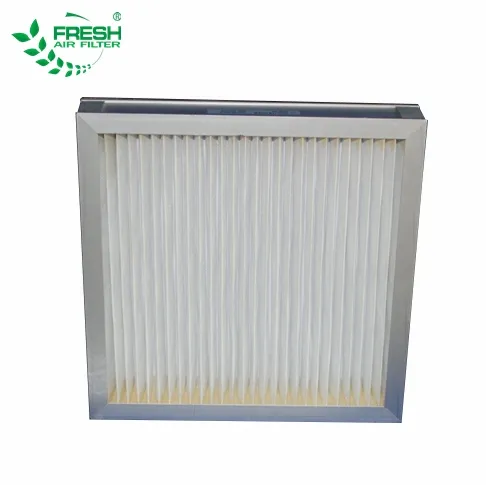

Merv-14 Panel Medium Efficiency HVAC Air Filter for Clean Room

Product Description

MERV-14 Panel Medium Efficiency HVAC Air Filter


Application:
Intermediate or end filtration of commercial and industrial ventilation systems, air conditioning systems,
1. Air conditioning system for clean room , intermediate or end filtration of clean room
2. Wide application in coating, surface treatment, chemical, cosmetic, pharmacy, hospital, automobile industry etc.
Material & Features:

1. Filter material: high strength PET.
2. Outer frame: aluminum alloy frame, galvanized steel frame or stainless steel frame.
3. Sealant glue : AB glue.
4. Sealant: foamed EVA.
5 Features: rigid, repeated use after washing.
Technical Parameters:
* Filtration Class: F5,F6,F7,F8(EN779)
* Porosity: ≥1μm
* Humidity resistance: ≤100%RH
* Temperature: ≤100ºC Maximum in continue service
* Instantaneous temperature resistance: ≤120ºC
Technical specification:

Model	Filtration class	Dimensions			Initial Pressure Drop	Final Pressure Drop	Rated Air Flow (m3/h)	Filtration Efficiency (%)
		W(mm)	H(mm)	D(mm)
FRS-MBF05	F5/EU5	595	595	46	≤90	≤360	3300	45
		595	495	46			2300
		295	595	46			1600
FRS-MBF06	F5/EU6	595	595	46	≤105	≤420	3600	65
		495	495	46			2400
		295	595	46			1800
FRS-MBF07	F5/EU7	595	595	46	≤120	≤480	3300	85
		495	495	46			2300
		295	595	46			1600
FRS-MBF08	F5/EU8	595	595	46	≤140	≤560	2500	95
		495	495	46			1700
		295	595	46			1200
Remark: Other specifications can be customized

Product Display:
Frequently Asked Questions
1. When can I get the quotation?
Answer: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you accept any OEM/ Customization order?
Answer: Yes, we are open to all OEM orders, once your LOGO is granted to be used by us from you ,We fully understand all ventilation projects / tenders are customized normally, thus we are open to size / spec customization.
3.What Certification, What QA measurements you have?
Answer:
Guangdong Fresh Filter Co.,Ltd is certified by UKAS ISO9001-2015 and TS14969.
All Fresh Air Filter products are strictly following EN779:2012 and EN1822 criteria. For any 3rd party testing, we can always submit to well-known 3rd parties for product testing.
In-house test report(s) can be furnished upon request.
Up to now, FRESH AIR FILTER has been granted for EN1822-5 sample testing for H14 HEPA Filters, also ISO16890 test certificate by European Authority, 3rd party CE certificate for Air filters and Activated carbon filters, all the test reports/certificates can be furnished upon request.

---
