YCX M830/M8 Smart Screen Tester for Screen Testing and True Tone Repair of iPhone 6-15 and Android Phones

Product Details

Product Description

Product Description
YCX M830/M8 Smart Screen Tester for screen testing and true tone repair of iPhone 6-15, Samsung, Huawei, Xiaomi, VIVO, iQOO, Redmi, OPPO, Realme, OnePlus, BlackShark, LG, Nokia, Transsion, Motorola and other Android Phones. YCX M830 M8 multi-function screen tester is used for mobile phone screen display test, touch test, 3D touch test, iPhone original color repair, etc.
Option:
1. YCX M830 screen tester (No battery).
2. YCX M8 screen tester (No battery).
3. YCX M8/M830+ 22pcs test cable for iPhone 6-15.
4. Phone screen test cables (Pls choose the models).
YCX M830 multi-function intelligent LCD screen tester is suitable for iPhone 5-15 Samsung Huawei Xiaomi Vivo and other mobile phone repairs. YCS M8 intelligent screen tester supports screen testing of mobile phones of various brands such as Apple, Samsung, Huawei, Honor, OPPO, vivo, Xiaomi, MOTO, Transsion, etc. M8 supports iPhone and supports iPhone X-15 series original color reading and writing.
M8 Features:
1. Original color reading and writing: Supports original color reading and writing functions of iPhone X-15 models, which can perform accurate color calibration after replacing the screen.
2. Current monitoring and protection: Provides current monitoring function, which helps detect hidden problems and ensures the safety of the device during testing.
3. PWM duty cycle test: Allows testing of PWM (pulse width modulation) duty cycle, which is essential for evaluating the performance of OLED screens.
4. Support: iPhone, Samsung, Huawei, Honor, OPPO, VIVO and Xiaomi and many other brands.

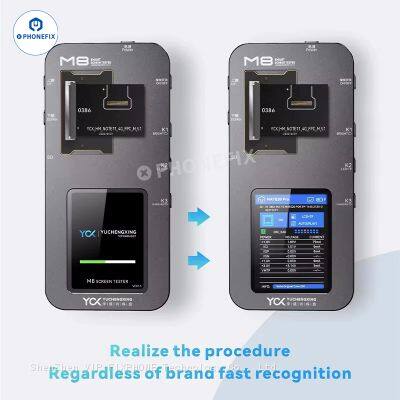

5. Automatic model identification: The tester can automatically identify the model of the device under test, simplifying the test process and reducing setup time.
6. Automatic selection of program version, support for original factory screen modification, built-in easily removable battery.
7. Compatible with compressed screen high refresh screen, display touch integrated test.
M830 Features:
1. Display test: Supports manual and automatic switching of test pictures, allowing comprehensive visual testing of the screen.
2. Touch test: Ability to perform touch test, including multi-finger line drawing test, which helps to evaluate the touch function of the screen.
3. 3D-Touch Test: Allows testing of the 3D-Touch feature across the entire screen, ensuring that pressure sensitivity is functioning properly.
4. Original Color Repair: Applicable to iPhone and Android devices, including the Original Color Repair feature, which helps restore the original color and brightness of the screen.
5. Compatibility The M830 is compatible with a wide range of devices, including iPhones from 6-15, as well as various Android brands such as Samsung, Huawei, Xiaomi, and Vivo.
6. The M830 is made of high-quality materials to ensure strength and corrosion resistance.
7. The tester includes multiple functions such as current monitoring protection, PWM duty cycle test, TE signal synchronization cutting, and reading screen IC model.
M830 Parameters:
Product model: M830.
Material: Aluminum alloy.
Color: Black.
Power supply: DC12V-1.5A.
Power interface: DC interface.
Working temperature: 25%C~85°C.
Working humidity: <90%RH.
Product size: 170.2mm*90.8mm*21.7mm.
Storage temperature and humidity: -30°C~ 85°C <90%RH.
Note: M8 is portable and can be equipped with optional batteries; M830 requires an external power supply.

---
