Efficient 230t Injection Molding Machine for Plastic Dustpans

Product Description

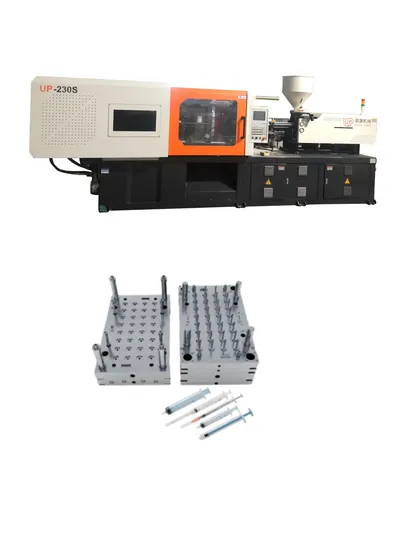

Servo Type Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Servo Type Injection Molding Machine
Our servo type injection molding machines, ranging from 70T to 3000T, are manufactured in China with top-quality components from international brands. Featuring European design concepts, our machines offer high energy efficiency, precision, efficiency, security, and stability.
Advantages:
High energy efficiency: Optimized servo energy-saving technology reduces unit energy consumption.
High precision: Improved mechanical structure and high-performance controller enhance injection accuracy.
Efficient: Optimized clamping unit ensures stable high-speed mold opening and closing.
High security: Compliant with national security standards for increased reliability.
High stability: Dual cylinder injection molding design provides stability and longer service life.
Our servo injection molding machines are optimized for energy savings and efficiency, suitable for producing various high-precision plastic products.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350
