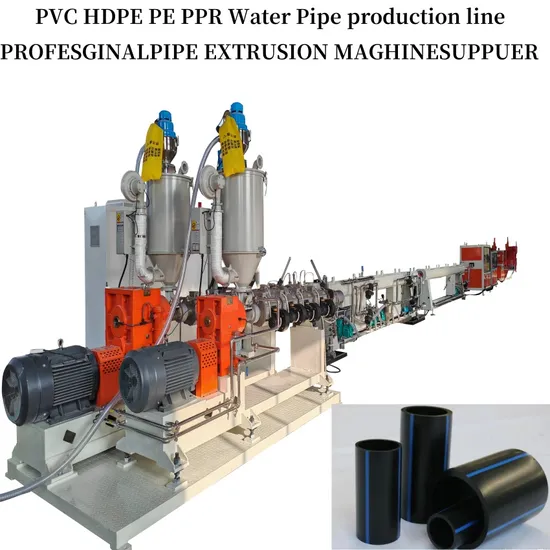

PE HDPE PPR Plastic Water Gas Oil Supply Pipe Tube Production Line

Product Description

PE/HDPE/PPR Plastic Water/Gas/Oil Supply Pipe/Tube Single Screw Extruder Production Line
PE/HDPE/PPR pipe production line:
1. The main machine adopts screws specially used for polyolefin. Equipped with auto vacuum charger and auto constant temperature dryer hopper, it possesses features of high production, good plasticization and stable extruding.
2. Die heads of helical type and basket type are perfect for polyolefin, and can help to produce sound melting pressure, and improve the plasticization capacity. Meanwhile, stable material-flow and pressure grade can be guaranteed.
3. Advanced vacuum calibrating method improves the cleanliness and hardness of surface. Reasonable high-speed sprinkling cooling water tank guarantees the pipe quality and high speed stable extruding.
4. Caterpiller of the hauling machine adopts anti abrassion alloy material, which realizes stable traction, wide frequency adjustment range and long lifespan.
PE/HDPE/PPR Production Flow:Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler
PE/HDPE/PPR Pipe Extrusion Machine Features:1. The optimum spiral bush highly improves the output of the pipe extruder2. Accurate temperature control system ensures material melting performance3. Unique screw design achieves better plasticizing and high-quality products4. Precisely designed gearbox with a high torsion guarantees stable running5. H sharp frame to decrease vibrating of an extruder6. Advanced PLC operation system realizes synchronization and high-quality products7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks8. Offer a stable haul-off unit with 2-12 caterpillars9. Provide saw &chip free cutting options10. Low energy consumption, excellent performance, and easy maintenance

Model	Pipe spec(mm)	Extruder	Max.output(kg/h)	Main motor power(kw)
ZR63-PPR	Φ16-Φ63	SJ65/33	120-200	104
ZR110-PPR	Φ50-Φ110	SJ65/33	150-200	146
ZR160-PPR	Φ75-Φ160	SJ65/33	200-250	176

Product introduction:
PE/HDPE/PPR pipe system is a new product widely used in developed countries in the world. It uses homogeneous fusion technology in cold and hot water transportation engineering. Its comprehensive technical performance and economic indicators are far better than other similar products, especially its excellent sanitary performance. The whole process of using waste recycling from production can meet the extremely high requirements of sanitation and environmental protection Pressure, heat preservation, energy saving, long service life and economic advantages.
Packing and Shipping:
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.

---
