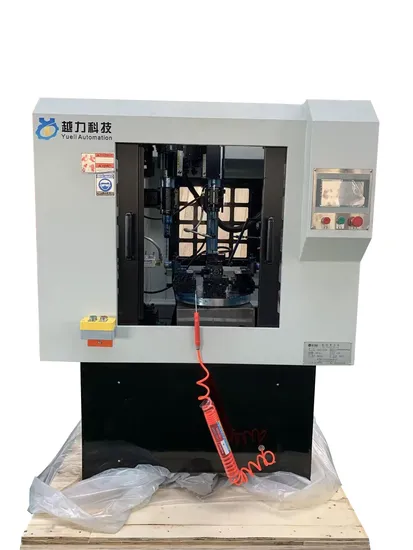

Rotary Drilling and Tapping Complex Machine with Water Heating Handle

Product Description

ZSK4112×2R
Vertical turntable drilling and tapping composite machine
Equipped with a servo drilling machine, a servo tapping spindle unit ,Spindle unit is equipped a servo drilling and a servo, left and right adjustable sliding table Spray system Pneumatic part price using AirTAC 5,Equipped with up and down, front and after, left and right adjustable tooling fixture Main technical parameters

NO.	Item name	Specification	Remark
1	Number of working position	4 Work Stations (optional)
2	Working Capacity	Maximum drilling tapping diameter 12(optional)	Aluminum Alloy Material
3	Indexing accuracy	Output Accuracy ≤±0.03	Reference Motor RV901.1 Kw Motor
4	Spindle shanktaper	BT8	Standard fitting
5	Spindle revolution	0-1440r / min Adjustable
6	Mounting mode of tool shank	Hand-operated screw tensioning
7	Specification for Spring Collet	ER20	Standard fitting
8	working accuracy	Hole location accuracy 0.05 / Repeat Location accuracy 0.03
9	Source Pressure	5-6 kg/cg
10	Diameter of working table	650mm
11	Machine size	1380X1050X1900
12	Machine Weight	1200kg
13	Power Capacity	Total power 3.7 kw

Display of processed products
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
