Wireless Bluetooth Remote Water Tank Level Monitoring Smart Remote Submersible Level Sensor

Product Description

Product Description
Wireless Bluetooth Remote Water Tank Level Monitoring Smart Remote Submersible Level Sensor

Product Feature

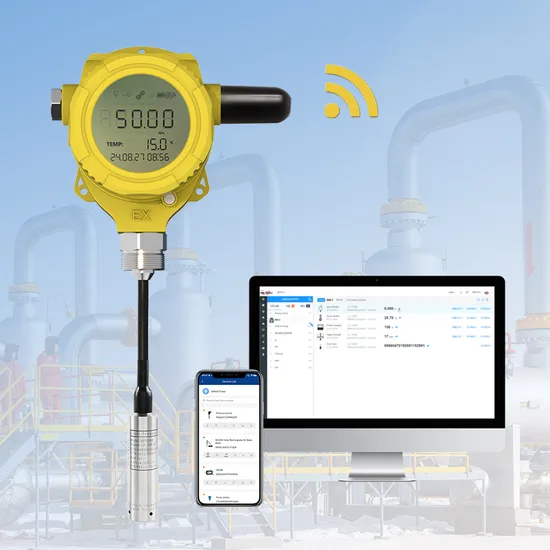

H2600 Series Wireless IoT Sensors: LoRa & 4G Models The H2600 Series Wireless IoT Sensors are smart instruments designed for seamless wireless communication in industrial settings. Available in LoRa and 4G models, the series includes the H2601 Pressure Sensor, H2603 Level Sensor, and H2602 Temperature Sensor, delivering reliable performance for a wide range of applications.
Key Features High Accuracy: Up to 0.25% F.S, ensuring precise measurements. Wide Measuring Range: Supports various industrial requirements. Low Power Consumption: 0.432W (LoRa) or 0.54W (4G) for extended battery life. Powered by a non-replaceable 38Ah lithium battery or a rechargeable 13Ah option. Durable Design: IP68 fully sealed and explosion-proof for harsh environments. Designed to meet industrial safety standards. Data Display: Dual-line LCD with three switchable data views for real-time monitoring. Data Storage: 15Mbyte capacity, capable of storing up to 655,360 entries to prevent data loss. Device Positioning: Integrated GPS for precise location tracking. Bluetooth Functionality: Optional for LoRa; standard with APP support for 4G. Cloud Platform Integration: Wireless data monitoring, analysis, and management via free cloud services. Access real-time and historical data online. Connectivity Options LoRa Model: Communication range up to 5.8 km for extended coverage. Active crystal oscillator LoRa module ensures stable signals. 4G Model: Reliable transmission via 4G networks for field instrument data.
Product Parameters

Model	H2601 Pressure sensor	H2602 Temperature sensor	H2603 Level sensor
Typical Accuracy	0.5% F.S	0.5% F.S	0.5% F.S
Customized Accuracy	0.25%F.S,0.1% F.S	0.25% F.S	0.25% F.S, 0.1% F.S
Connection	G1/2 male, G1/4 male, 1/2"NPT male,1/4"NPT male	G1/2 male, 1/2"NPT male	M32X1.5
Measuring Range	0-0.01...100Mpa optional	-50~250ºC optional	0-1m...100m optional
Display	Segment LCD Screen
External Power Supply Voltage	5-36VDC
Communication	4G/LORA
Operating Power Consumption	<0.54W(4G)/<0.432W(LORA)
Standby Current	Without Bluetooth: 35ua; with Bluetooth: 120ua
Operating Temperature	-30ºC~70ºC (media does not crystallize)
IP Rating	IP68
Explosion-proof Rating	Ex ia IIC T6 Ga; ExdBT6
Battery Capacity	Non-rechargeable Battery: 3.6V, 38Ah Rechargeable Battery: 3.6V, 13Ah
Battery Life	Up to 10 years (Collect and report data once per hour)
Antenna	External antenna
Storage Capacity	15Mbyte, capable of storing approximately 655,360 data records
Data Collection Cycle	Range: 1~172,799 seconds(i.e, 2 days), Default: 1 second
Data Reporting Cycle	Range: 1~16,777,215 seconds(i.e, 6.4727 months),, Default: 60 seconds
	Note: There may be slight differences from standard time in the reporting cycle interval. If the current scheduled reporting fails, it will be resent during the next scheduled reporting
Configuration Method	Local USB, Bluetooth or remote configuration
Serial Port Parameters	Baud Rate:115200; Data Bits: 8; Stop Bits: 1; Parity: NONE

Application Smart wireless pressure transducer is widely used in fire water system, tap water supply network, gas, fire pipe network, drainage pipe network, air conditioning water cooling system and other fields.
