Product Description
Product Description

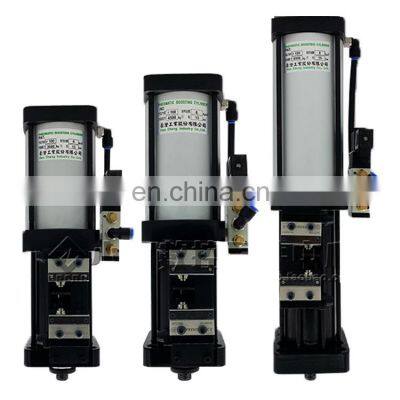

Product ParametersBasic parametersAction pressure3500KG/4500KG/6000KGTravel13mm/15mm/20mmInstallation hole spacing of knife cylinder84mm*84mmUse fluid6Cylinder inner diameter100Taiwan Haocheng, Xiepin, Shangpin and other knife cylinders, processing center knife cylinders:The integral cylinder of the product is equipped with 2 limit switches and 1 solenoid valve. The default is 24V. If 110V is required, please consult customer service before purchasing and make comments.The center distance between the 4 screw holes of the mounting base is 84MM * 84MM, standard size, 3500KG-13MM,4500KG-13MM,4500KG-15MM,6000KG-15MM. Such as different models of installation base size is the same, but the height is different. It is completely universal with other brands such as Beiju and Zhenshang.BT40 spindle is generally equipped with 3500KG-13MM and 4500KG-13MM,BT50 spindle is generally equipped with 4500KG-15MM and 6000KG-15MM.The product is guaranteed for 1 year (under normal use)!Precautions for use:1.The gas-liquid knife cylinder (booster cylinder) can be installed vertically and horizontally, and the oil cup mouth must be vertically upward during horizontal installation.2.The input air source must be processed by the origin triple piece, which is dry bath and clean compressed air with a pressure of 5~7kgf/cm2.3.The safe minimum oil volume in the oil cup is 1/5, and the maximum oil volume is 4/5. Please add No. 32 hydraulic fluid.Taiwan xiepin knife cylinderEquipped with 2 travel switches and 1 24V solenoid valve.The center distance of the four screw holes of the mounting base is 84mm, and the base width is 110mm. The size of the 6T cutter cylinder is the same, but the height is slightly higher. Most of the knife jars in hebeiju, Zhenshang, Shangpin and other markets are perfectly replaced.Installation steps:Turn off the power supply of the machine (panel and electric cabinet) and turn off the air supply.Remove the headstock cover, pull out the air pipe on the solenoid valve of the old cutter cylinder, screw down a plastic nut of the locking coil of the solenoid valve (do not remove the wire, if the mark is made, you can also remove the wire), and remove the wires of the upper and lower travel switches (make a mark); at this time, the old cutter cylinder can be taken down.Install the new screwdriver cylinder and fix it with screws. Just install the removed wire, solenoid valve coil and air pipe. Note: the upper travel switch must be pressed; the position of the lower travel switch must be adjusted (press the tool release button and the cylinder will release the tool. At this time, the lower travel switch will be pressed by the stop in the middle of the cylinder. The position of the travel switch under the machine with tool magazine must be adjusted properly, otherwise it will be very dangerous.) after installation, take a knife and try it first. The elastic and tight knives are normal, and then process. If there is a tool magazine, change the knife with the tool magazine and try again.Physical productQ: Do you support customized manufacturing?A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.Q: How long is your delivery time?A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according toquantity.10-20 days if customized manufacturing.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample with sample price.Q: What is your terms of payment ?A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below
>>
