Factory Iron Ore Hydraulic Cone Crusher with Low Price

US$29,999.00-9,999,999.00 1 Set (MOQ)

Basic Info.

Discharge Setting Min
13-38 mm
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Advantage
Longer Servicelife
Feature
Easy Operation
Drive
Hydraulic
Crushing Degree
Fine Grinding Machine
Principle
Cylinder Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Object
Quarry, Mining, Metallurgy
Specification
11.5-63 t
Trademark
DL
Origin
Jiangsu, China
HS Code
8474900000
Production Capacity
5 Sets/Year

Product Description

Factory Iron Ore Hydraulic Cone Crusher with Low Price
Product Description of our Cone Crusher Application
Secondary and Tertiary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental
General Introduction
This series cone crusher is developed with a unique patented designeccentric bushing moving around a stationery shaft.The reinforced main shaft is suitable extra heavy
duty crushing condition. Meanwhile, the crushing
chamber specially designed according to particles sink principal and its matching speed can sharply increase
the crushing ratio, output and content percentage of cubical product in final crushed material. The series crusher is regarded as new generation for replacement of the
traditional spring cone crusher in modern mining industry.
The PYH series cone crushers are characterized by the optimized combination of crusher speed, eccentricity
and cavity profile. This combination has proved revolutionary, providing higher capacity, better product quality and suitability to a wider range of applications.
The PYH cone crusher cavity can be converted from extra-fine to extra-coarse simply by replacing the mantle, bowl liner, adapter ring, and wedge bolts. In this way, the crusher is easily adapted to feed and reach desired product requirements.
This series cone crusher is adopted with a unique patented designeccentric bushing moving around a stationery shaft.The reinforced main shaft is suitable extra heavy
duty crushing condition. Meanwhile, the crushing chamber specially designed according to particles sink principal and its matching speed can sharply increase the crushing ratio, output and content percentage of cubical product infinal crushed material. The series crusher is regarded as new generation for replacement of the
traditional spring cone crusher in modern mining industry.
Working Principle
Adapting particles sink principle(laminated crushing principle), as feeding laminated material and increase its idensity in the crushing chamber, crushing force given fully to material, through squeezing, bending, impact, grinding, and crushing between materials to get the materials crushed.
Technical Parameters
Model
Cavity
 Discharge Setting
Min (mm)
 Feed Opening
(mm)
 Power
(kW)
 Weight
(t)

PYH-2
 X
 13
 95

160

11.4
Z
 16
 120
C
 19
 190
PYHD-2
 Z
 6
 54
C
 10
 76


PYH-3
 X
 13
 105


220


17.4
Z
 16
 150
C
 19
 215
CC
 25
 230

PYHD-3
 X
 6
 25
Z
 8
 54
C
 10
 76


PYH-4
 X
 13
 110


315


24.5
Z
 20
 200
C
 25
 250
CC
 30
 300

PYHD-4
 X
 6
 40
Z
 8
 50
C
 10
 90

PYH-5
 X
 16
 135


400


34.4
Z
 22
 210
C
 30
 290
CC
 38
 330

PYHD-5
 X
 8
 40
Z
 10
 56
C
 13
 95

PYH-8
 X
 16
 220


630


63
Z
 25
 265
C
 30
 300
CC
 33
 350

PYHD-8
 X
 5
 35
Z
 10
 90
C
 13
 155


Crusher Models and Capacities (t/h) at Close Side Setting
Model
 Close Side Setting (mm)

6
 8
 10
 13
 16
 19
 22
 25
 32
 38
 45
 51
PYH-2
 55-75
 60-90
 80-115
 110-145
 130-170
 140-180
 150-190
 160-210
 180-230
 200-245

PYH-3
 80-95
 100-130
 110-140
 145-185
 175-220
 190-240
 200-260
 220-280
 240-320
 290-380
 340-440
PYH-4
115-150
 130-175
 180-230
 220-280
 240-320
 260-340
 280-370
 310-430
 350-490
 400-550
 450-620
PYH-5
140-170
 170-220
 225-290
 270-350
 310-400
 335-430
 355-450
 395-530
 435-600
 500-680
 560-760
PYH-8

235-330
 300-420
 370-500
 420-540
 450-590
 480-710
 530-780
 580-920
 560-1000
 750-1150

2018 Bauma exhibition

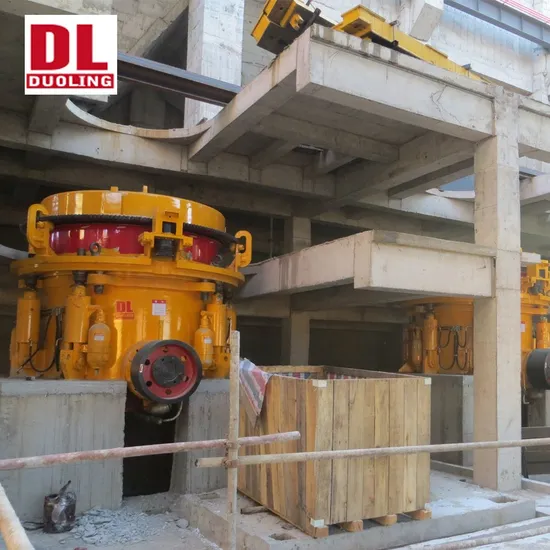

Successful Cases with Our Crusher
