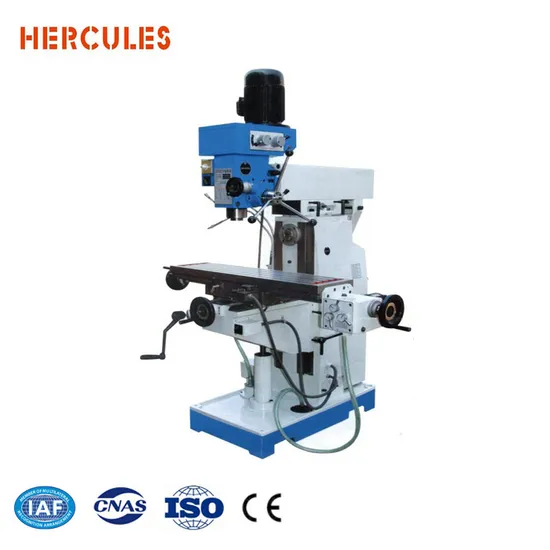

| Model | ZX7550CW |
| Spindle taper | ISO30/R8/MT4 |
| Distance form spindle to table | 70-420mm |
| Distance from horizontal to table | - |
| Distance from spindle to column | - |
| Spindle speed | (8 step)115-1750rpm(V)
(6 step)60-1350rpm(H) |
| Spindle travel | 120mm |
| Max. drillingcapacity of auto-feeding | 50mm |
| Head movement | ±45° |
| Table size | 800x240 mm |
| Max. weight of workpiece | - |
| Table travel(Horizontal/Cross/Vertical) | 400/230/350 mm |
| T-slot Number/Width/Distance | 3/14mm/60mm |
| Milling head moving(Vertical) | Dovetail |
| Cross slide way | Dovetail |
| Longiudinal slide way | Dovetail |
| Horse power for main motor | 0.85/1.5kw(V) 1.5kw(H) |
| X axis driving motor | 370W |
| Coolant pump power | 40W(12L) |
| Overall dimension | 1290x1220x2100mm |
| Packing size | 1140x1220x2220mm |
| N.W/G.W | 850/1000kg |
| Hercules Machinery Equipment Ltd. |
