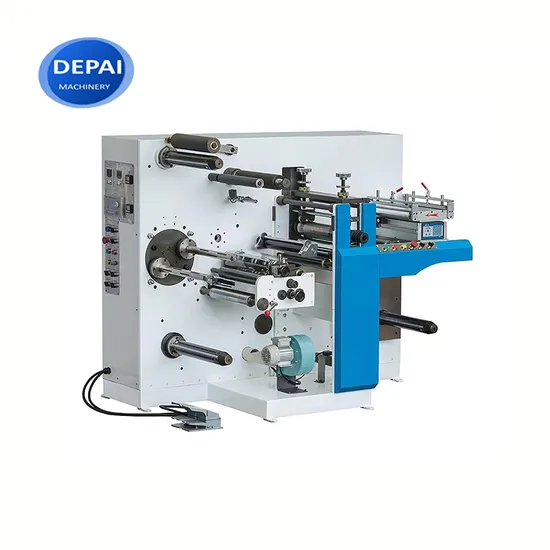

High Speed Automatic Turret Rewinding Blank Label Rotary Die Cutting & Slitting Machine

Product Description

Product Description High Speed Automatic Turret Rewinding Rotary Die Cutting & Slitting Machine

DES320H rotary die cutting machine with slitting function is a new product, it equipment with high accurate rotary die-cutting system. This machine is suitable for blank adhesive labels. Die-cutting and slitting can be finished in one process. It has the function of automatic meter counting, automatic stopping,web guiding by photoelectric eye. The machine has the characteristics of compact structure,fast speed, high efficiency, easy operation, accurate slitting, steady running ect.
1. Bound board is installed on unwinding shaft, convince to fix the material.
2. Magnetic cylinder is easily to change.
3. Upper rewinder adopts two rewinding shaft shift structure.
4. Adopt synchronous belt to drive, decrease the noise and maintain.
5. Unwinding, rewinding, waste rewinding all are controlled by magnetic powder brake/clutch.
6. Unwind tension controlled automatically. Rewinding tension adopts taper control. Product Parameters Parameters

Material width	320mm	450mm
Slitting speed	200m/min	200m/min
Die cutting speed	150m/min	150m/min
Die cutting repeat	200 - 480mm (63T - 150T)	200 - 480mm (63T - 150T)
Max.diameter of unwinding roll	600mm	600mm
Max.diameter of Rewinding roll	Upper: 300mm Down: 600mm	Upper: 300mm Down: 600mm
Overall size	1900*900*1440mm	1900*1030*1440mm
Weight	1000KG	1000KG
Voltage	3 phase 380V, 50HZ Please kindly inform us if different	3 phase 380V, 50HZ Please kindly inform us if different

Configures

PLC		HUCEEN, Shenzhen
Touch screen		Inovance, Shenzhen
Main motor	4KW	Lichao, shanghai
Unwinding brake	5kg	Huaguang, Rui'an
Upper rewinding clutch	2.5kg	Huaguang, Rui'an
Down rewinding clutch	5kg	Huaguang, Rui'an
Waste rewinding clutch	1.5kg	Huaguang, Rui'an
Counter		LEUZU, Germany
Frame web guiding		Dongdeng, Chongqing
Fan	180W	Benli, Wenzhou
Low-voltage apparatus		CHINT, Wenzhou
Circular knife	8 pcs	Shanghai

Detailed Photos Unwinding Roll Web Guide

Die Cutting Slitting

Rewinding Roll Tension Control

Waste Discharge Blower

Samples


Our factory
Hangzhou Depai Machinery has emerged as a leading manufacturer of printing and packaging machines. We speciallized in flexo printing machine, die cutting machine, slliting machine,and other pre&post printing machines for more than 15 years, and currently has customers all over the world.. We have a professional aftersales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call. Our factory also cooperated with some famous French and German companies. Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study. By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China. Although we are young, we love this industry and hope that our efforts can change and drive the continuous development of the printing industry. We hope that we can become your loyal partner.
Packaging & Shipping
Certifications
FAQ 1. Q: Are you trading company?
A: We are the professional manufacture for printing machines.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.

4. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.

---
