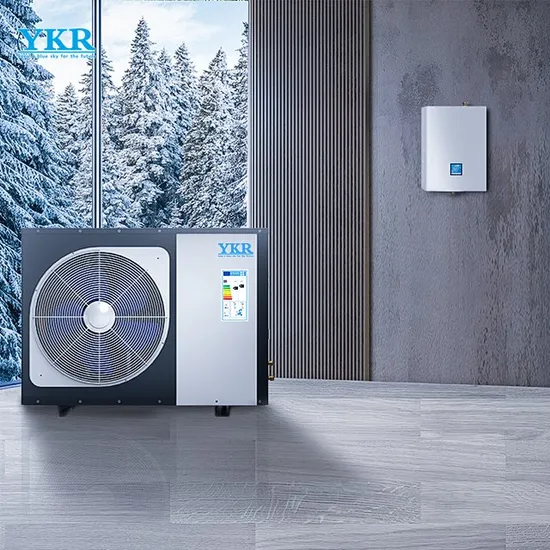

Ykr Germany Sg Ready a+++ WiFi DC Inverter 10kw 12kw 16kw R290 Monobloc Air to Water Heat Pump Water Heater

Product Description

Product Parameters

Model			YK-06/BPKTR3	YK-05/BPKTR3-S	YK-06/BPKTR3-S	YK-08/BPKTR3-S	YK-10/BPKTR3-S
Power Supply		V/Ph/Hz	220-240/~/50	380-415/3N~/50	380-415/3N~/50	380-415/3N~/50	380-415/3N~/50
Heating1	Max. Heating Capacity	kW	18.6	16	18.6	24	30
	COP	W/W	4.47	4.51	4.47	4.48	4.46
	Heating Capacity Min./Max.	kW	8.2/ 18.6	7.6/ 16	8.2/ 18.6	10.56/24	13.2/30
	Heating power Input Min./Max.	kW	1.5/4.16	1.31/3.55	1.5/4.16	1.93/5.36	2.42/6.73
	COP Min./Max.	W/W	4.47/5.45	4.51/5.8	4.47/5.45	4.48/5.46	4.46/5.45
Heating2	Max. Heating Capacity	kW	17.3	15.5	17.3	22.3	27.8
	COP	W/W	3.56	3.8	3.56	3.58	3.57
	Heating Capacity Min./Max.	kW	7.6/ 17.3	7.3/ 15.5	7.6/ 17.3	9.8/22.3	12.2/27.8
	Heating power Input Min./Max.	kW	1.75/4.85	1.49/4.08	1.75/4.85	2.25/6.23	2.81/7.78
	COP Min./Max.	W/W	3.57/4.34	3.8/4.9	3.57/4.34	3.58/4.35	3.57/4.34
Cooling1	Max. Cooling Capacity	kW	16.7	14.5	16.7	21.5	26.8
	EER	W/W	3.42	3.55	3.42	3.43	3.42
	Cooling Capacity Min./Max.	kW	7.2/ 16.7	6.8/ 14.5	7.2/ 16.7	9.4/21.5	11.8/26.8
	Cooling Power Input Min./Max.	kW	1.77/4.88	1.62/4.08	1.77/4.88	2.32/6.26	2.91/7.83
	EER Min./Max.	W/W	3.42/4.06	3.55/4.19	3.42/4.06	3.43/4.05	3.42/4.05
Cooling2	Max. Cooling Capacity	kW	13.5	10.9	13.5	17.5	21.7
	EER	W/W	2.78	2.79	2.78	2.79	2.78
	Cooling Capacity Min./Max.	kW	6.1/ 13.5	5.9/ 11.9	6.1/ 13.5	7.8/ 17.4	9.6/21.7
	Cooling Power Input Min./Max.	kW	1.76/4.85	1.64/4.12	1.76/4.85	2.24/6.24	2.78/7.80
	EER Min./Max.	W/W	2.78/3.46	2.89/3.6	2.78/3.46	2.79/3.48	2.78/3.45
Rated Current		A	18.5	6.1	6.2	7.8	9.8
Max Current		A	30	9.5	10	12.5	15.7
SCOP Level (35°C)			A+++	A+++	A+++	A+++	A+++
SCOP Level (55°C)			A++	A++	A++	A++	A++
Working Ambient Temperature		ºC	-30~43	-30~43	-30~43	-30~43	-30~43
Operating Water Temperature		ºC	7~60	7~60	7~60	7~60	7~60
Refrigerant			R32	R32	R32	R32	R32
Compressor	Type - Quantity/System		Twin Rotary -1	Twin Rotary -1	Twin Rotary -1	Twin Rotary -1	Twin Rotary -1
Fan	Quantity		2	2	2	2	2
	Airflow	m³/h	6500	6000	6500	9000	11000
	Rated power	W	200	180	200	260	300
Water Side Heat Exchanger	Type		Plate Heat Exchanger	Plate Heat Exchanger	Plate Heat Exchanger	Plate Heat Exchanger	Plate Heat Exchanger
	Water Pressure Drop	kPa	28	25	28	30	32
	Piping Connection	inch	G1"	G1"	G1"	G1-1/4"	G1-1/4"
Allowable Water Flow	Min./Rated./Max.	m³/h	1.9/3.2/3.9	1.5/2.75/3.0	1.9/3.2/3.9	2.9/4.2/5.0	3.6/5.2/6.3
Noise Level		dB(A)	57	56	57	58	59
Net Size(LxDxH)		mm	1104×445× 1350	1104×445× 1350	1104×445× 1350	1308×470× 1460	1308×470× 1460
Packing Size(LxDxH)		mm	1140×450× 1490	1140×450× 1490	1140×450× 1490	1350×495× 1600	1350×495× 1600
Net Weight		kg	137	132	137	161	167
Gross Weight		kg	148	143	148	177	183
Loading Quantity (20GP/40HQ)			22/48	22/48	22/48	19/41	19/41

R & D and production
Each heat pump will be tested in the running test line for about 8 hours of simulated use.The test equipment records all data to ensure that each function operates normally andcompletely. After delivery, our technical team will be dedicated to installation,use and other services
Product Description
Company Profile
Company strength
R&D strenath With the pursuit of promoting the development of international green energy, thecompany is committed to solving the environmental hazards and high energy consumption problemscaused by other heat sources such as boilers and electric heating. With a strong technical team, theproducts developed include: air energy domestic water heater, air energy commercial water heater(circulator, direct-heater, high-temperature machine, ultra-low-temperature machine) air energy coolingand heating unit, air energy frequency conversion cooling and heating unit, air energy triple supply unitThe heat pump integrated drying unit, the heat pump split drying unit, the constant temperatureswimming pool dehumidification unit, the sewage source heat pump unit, the water source heat pumpunit and other series can be widely usedin household,commercial, industrial, aqricultural and otherfields, and is a well-known domestic comprehensive green new energy solution provider. Certifications
FAQ
Q: How many years have your company been in heat pump industry?
A: We are the NO.1 heat pump exporter in China.
We NEW ENERGY has full experience in the field of heat pumps for more than 17 years. NEW ENERGY has kept growing rapidly during these years since it was established. In 2019, our turn over reached an amount of 101 million US dollars and in the same year NEW ENERGY was loaded on the China's New OTC market.

Q: Do you accept OEM & ODM?
A: Yes. We can produce NEW ENERGY standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, NEW ENERGY will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer NEW ENERGY's own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market's media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.

---
