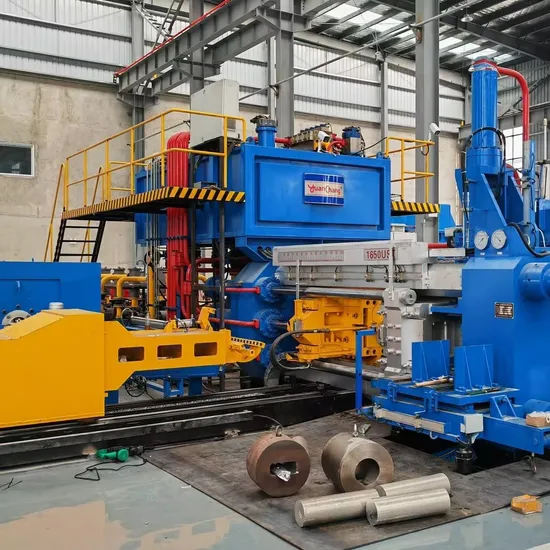

Chinese Manufacturer of Aluminum Extrusion Press Xj-1650ust

Product Description

Selection Table
Model	Pressure (MPa)	Billet Diameter (mm)	Billet Length (mm)	Total Power (KW)	Overall Size
Metric Tons(UST)
XJ-630(690UST)	21	Φ80-Φ100	500	120	8.0×3.2×2.8
XJ-800(880UST)	21	Φ100-Φ130	550	250	11.0×3.5×3.2
XJ-1000(1100UST)	21	Φ110-Φ140	600	250	11.5×3.8×3.4
XJ-1350(1500UST)	25	Φ120-Φ152	750	400	12.5×4.2×3.8
XJ-1500(1650UST)	25	Φ127-Φ152	850	400	13.5×4.2×3.8
XJ-1800(2000UST)	28	Φ152-Φ203	950	600	15.5×6.0×4.2
XJ-2000(2200UST)	28	Φ178-Φ228	1000	600	16.0×6.5×4.5
XJ-2200(2400UST)	28	Φ178-Φ228	1050	750	16.5×6.5×4.5
XJ-2500(2750UST)	28	Φ203-Φ254	1050	750	18.0×7.5×5.5
XJ-2750(3000UST)	28	Φ203-Φ254	1100	850	18.0×7.5×5.5
XJ-3000(3300UST)	28	Φ228-Φ280	1150	1000	19.0×8.0×6.0
XJ-3600(4000UST)	28	Φ254-Φ330	1200	1100	20.0×9.0×6.5
XJ-4000(4400UST)	28	Φ280-Φ330	1300	1100	20.0×9.0×6.5
XJ-4500(5000UST)	28	Φ280-Φ355	1300	1300	21.5×10.0×7.0
XJ-5500(6000UST)	28	Φ305-Φ406	1500	1500	23.0×11.0×7.5
XJ-7500(8200UST)	28	Φ355-Φ457	1700	1800	25.0×14.0×8.5

ps:The above data is for reference only, and adjustments may be made based on actual circumstances(Copper extruders also refer to the above table)
Company Profile
Wuxi Yuanchang Machinery Co.,Ltd is a professional enterprise specializing in the manufacturing of complete sets of equipment for non-ferrous metal extrusion machines.With years of manufacturing experience and technological accumulation,our company is committed to providing high-quality and reliable extrusion equipment and solutions for the global non-ferrous metal extrusion industry.
Details of product
Our honor
CNC machining center
Our clients vist
Delivery site

---
