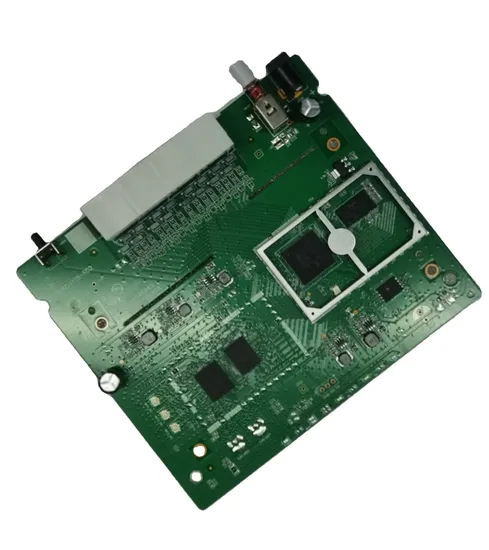

Inverter Custom Printed Circuit Board Assembly PCBA) Green Solder Maskfr-4 Base Motherboard

Product Description

Company Profile 00:00 00:00 Overview Sichuan Yichuangxin Electronic Technology Co., Ltd. is an electronic technology company
that integrates product research and development, production, and sales, with a total area of about 6500 square meters. It has a modern production workshop, office area, self owned dormitories, and a series of production and living supporting facilities such as a self operated restaurant. The company currently has 2 exclusive factory buildings, 5 high-speed SMT lines, 2 wave soldering plug-in lines, 2 three proof spraying lines, and 3 assembly lines The company has obtained 16 patent certificates and high-tech enterprise qualifications, as well as ISO 9001 quality management system certification and GJB 9001C weapon equipment quality management system certification
The company's main business includes PCB circuit design and plate production, PCBA assembly (SMT mounting, DIP welding, assembly testing), micro assembly (RF and microwave components), three proof paint spraying, machining/sheet metal processing, and electronic component procurement. We provide one-stop production and delivery services
Products Description Product Paramenters

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper Weight	0.5--6oz
Color
Solder mask	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Silk screen	White, Black, Blue,Yellow
Acceptable File Format	Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
Certificate	ISO9001

Manufacturing Technique Certifications Why Choose Us Core competitiveness of the company:
1. Strong equipment capability, advanced and high-end, with complete industrial equipment
2. Strong core process capability, monthly production of 500 product models (capable of mounting high-end precision SMT products such as 01005, 0201-LGA, BGA and QFN, SiP&POP technology, wafer mounting, etc.)
3. Strong quality control capabilities, MES system and error prevention material tracking system, material traceability, etc
4. Fast delivery: Respond quickly to customer needs 24/7, with flexible manufacturing and high-quality service
5. High skilled talent training system
6. Excellent corporate culture and corporate atmosphere
The company has advantages in equipment, scale, channel, efficiency, and operating costs, rich industry resources and channels,and vertical integration capabilities. It has long provided electronic product production and processing as well as overall supporting services to customers in industries such as military industry, scientific research institutions, university research institutions, communication equipment, industrial control, medical, automotive electronics, rail transit, aerospace, and new energy, and has gained recognition from multiple customers, And established a long-term stable cooperative relationship.

---
