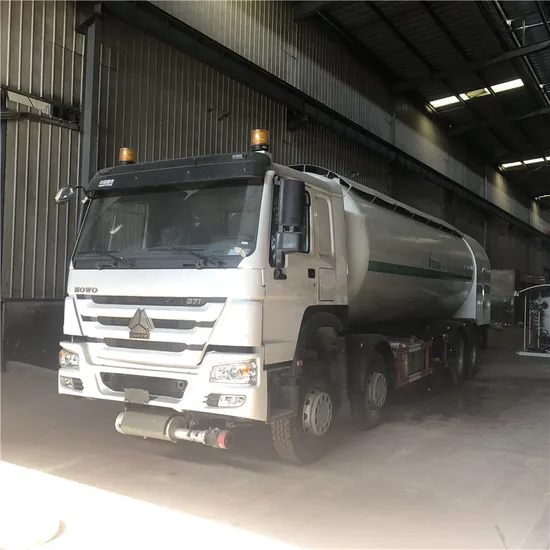

30 Cubic to 35 Cubic 8X4 Sinotruck HOWO Propane Tank Gas Filling LPG Tanker Truck

Product Description

30 Cubic to 35 Cubic 8X4 Sinotruck HOWO Propane Tank Gas Filling LPG Tanker Truck

ITEM	UNIT	PARAMETER
Vehicle		Howo LPG refuel truck (propane)
Overall dimensions	mm	12000x2500x3450
Tank dimention	mm	2350x11x8960
Fact volume	m3	35
Filling factor	Kg/m3	420
GVW	kg	Appro×31000
Curb weight		Appro×15895
Payload		Appro×14910
Wheel base	mm	1600+4600+1350
F/R track base		1928/1847
F/R suspension		1245/2995
Approach/departure angle	°	26/12
Max speed	km/h	90
Axle Load	kg	7000/16000/16000
Drive system	8x4	Steel	Power, Sino
Tire specification	12.00-20 16PR	Number of axles	4
Engine model	Manufacturer	China National Heavy Duty Truck Group Co ., Ltd
	Model	WD615.69
	Emission/kw	9726ml/247Kw, 336hp
	Gear box	10F&2R
	Emission standard	Eu 2
LPG tank performance
Designing pressure	Mpa	1.77
Working pressure		≤1.6
Hydraulic test pressure		2.22
Air test pressure		1.77
Working temperature	ºC	≤50
Tank material	Carbon steel Q345R,16MnIII

Component
A complete LPG filling station should include the following parts: tank area (storage tank, residual liquid irrigation, overpass, protective wall, etc.), compressor room (compressor and related motor), steam tank loading and unloading station (source source loading and unloading) Place), transformer and distribution room (transformation and distribution equipment), gas island (gas filling machine, etc.), lightning protection tower, fire protection facilities, office and living building, etc.
ingredient
LPG (liquefied petroleum gas) is a mixture of propane and butane, usually accompanied by small amounts of propylene and butene. A strong odorant, ethanethiol, is added to the liquefied petroleum gas so that the leakage of LPG can be easily detected. Liquefied petroleum gas is produced during the extraction of crude oil or from the oil or natural gas extraction process. Liquefied petroleum gas (LPG) is often mistaken for propane. In fact, LPG is a mixture of oil and natural gas under appropriate pressure and exists in a liquid state at room temperature. In the United States and Canada, the mixing of these two substances is generally considered to consist primarily of propane, while in many European countries the propane content in LPG is only 50% or less.
LPG is gaseous at normal temperature, can be liquefied under pressure or low temperature, and is non-toxic, but at a higher concentration, it has a paralyzing effect on the central nervous system of the human body, causing suffocation and death.
The octane number of liquefied petroleum gas is around 110, while the gasoline is around 90-95, which is higher than 5%-10% of gasoline. Therefore, liquefied petroleum gas has higher knock resistance than gasoline.
Our Factory
Products Display
Cooperative Partner
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
