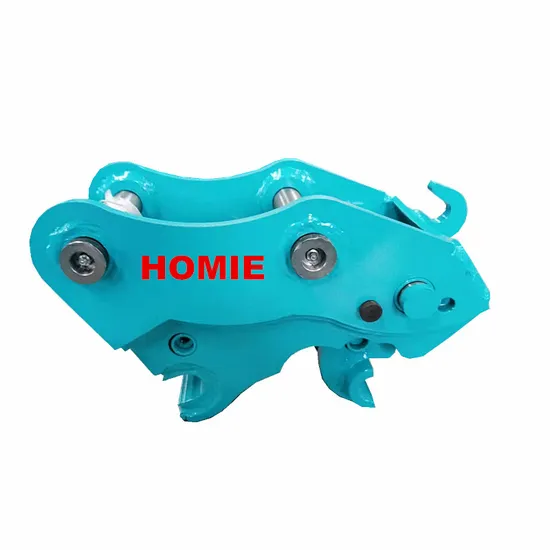

Bucket Quick Coupler for Sale, Coupler for Excavator Mini 5t Use

US$1,400.00
1-4 Pieces
US$220.00
5+ Pieces

Basic Info.

Model NO.
HM 04(4-8T)
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, SGS Noa
Condition
New
Pin to Pin Centre
230-270mm
Suitable Excavator Weight
4-7tons
Model No.
Hm02
Pin Diameter
45-50mm
Required Oil Flow
10-20L/Min
Feature
Easy to Install for All of Attachment to Excavator
Forearm Open Width
155-170mm
Working Pressure
40-380kg/Cm2
Color
Yellow, Red, Black or as Per Customer
H.S Code
8412210000
Transport Package
Standard Package: Polywood Case
Specification
MINI
Trademark
HOMIE
Origin
Yantai China
HS Code
8412210000
Production Capacity
500 Pieces/Month

Product Description

*************** PRODUCT DETAILS ***************
Quality Control
High Efficiency Delivery
If you are interested in our products, welcome inquiry
There are many variations in the design of quick couplers. The initial difference is between those that can pick up any of a range of attachments, such as buckets, by clamping onto the mounting pins for the attachment.
These are known as pin grabbers or pin couplers. There is also a variation that works only with buckets and attachments designed to suit that particular quick coupler,also known as a dedicated coupler.
HOMIE adjustable manual quick coupler offers a dependable design for use with OEM configured attachments. No pin removal is needed for an easy exchange of a variety of attachments. One-man operation, allowing change of attachments from inside cab. Adjustable design allows the same coupler to fit many different machines in the same class. No special modifications needed for buckets/attachments.
