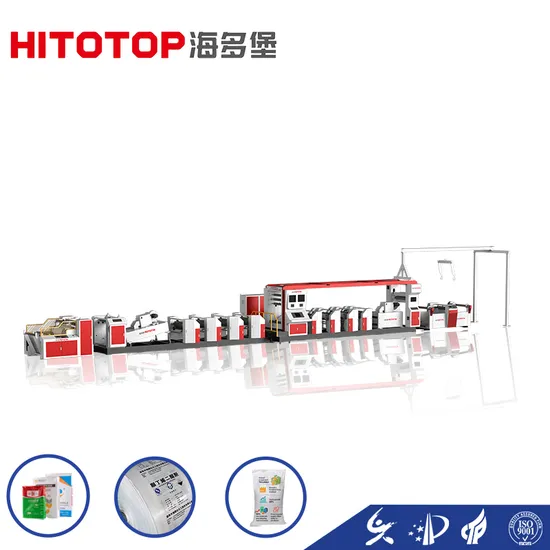

This type of equipment is a roll-to-roll printing machine developedand manufactured by our company based on a number of thelatest patented technologies. it adopts a speed-adjustable plateroller structure to achieve the function of not changing the plateroller. The flexographic plate (resin plate or rubber plate) is the typeplate. Using liquid ink (environmentally friendly ink or oil-based ink)the ink is transferred through a ceramic anilox roller for clear andhigh-speed transfer printing. The equipment is widely used in theprinting industry of plastic woven fabrics, non-woven fabrics,plastic films, paper and other materials.
| MODEL | HDB-YRJZ844B-800ZN |
| Printing Material | PP Woven frabric roll (60-120G/M²) |
| Process Color Set | 8 color |
| Cloth Roller Width | 800MM |
| Rewinding And Unwinding Diameter | ≤1500MM |
| Double-sided Tape Thickness | 0.2MM |
| Color Set Range | Longitudinal 360,horizontal ± 15MM (no stop machine) |
| Single-sided Longitudinal Overprinting Accuracy | ≤±1MM |
| Single-sided Horizontal Registration Accuracy | ≤±2MM |
| Printing Speed | 80-150PC/min(Depends on length of bag and ink) |
| Heating And Drying System | Electric heating, closed hot air circulation |
