Commercial Making Fully Automatic Buscuits Cookies Biscuit Machine

Product Description

50kg/h, 100kg/h capacity biscuit machine/biscuit production line/biscuit making machine
I. Biscuit production line processing flow chart:

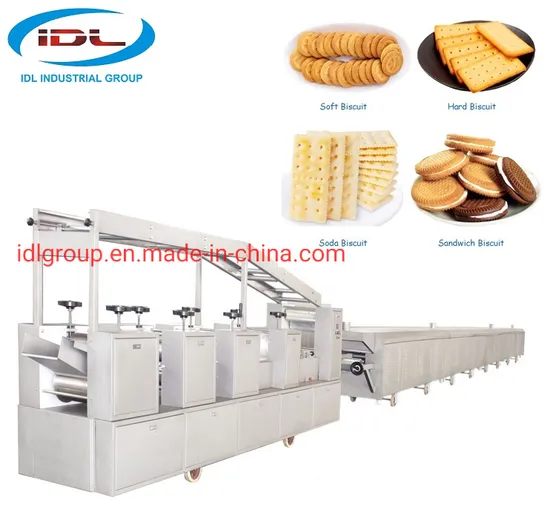

II. General Description
IDL automatic biscuit machinery/biscuit production line, with original design, compact structure and highly automatic, has developed on the base of absorbing Japanese technology. All working procedures that from dough feeding, sheeting, molding, waste recycling, baking to cooling, can be completed automatically in one line. Hundreds of molds and dozens of technology recipes make it possible to produce all kinds of popular biscuits, such as hard biscuit, soft biscuit, cream biscuit, layer biscuit, soda cracker, calcium biscuit, multi-vitamin biscuit, vegetable biscuit, etc.
III. Biscuit process & introduction
1) Flour mixing-dough sheeting----biscuit molding-----baking----oil spraying---cooling---packing
2) Capacity: 500 -1250kg/hr
3) Final Products Sample:
IV. Technical parameters:

The model	IDL-B225	IDL-B280	IDL-B400
The power	380V/50HZ	380V/50HZ	380V/50HZ
Installed power	20.5KW	38.8KW	90KW
The impression roller	Φ205×205mm	Φ305×280mm	Φ405×280mm
Baking temperature	200-300ºC	200-300ºC	200-300ºC
Working width	225mm	280mm	200-300ºC
capacity	50-80kg/h	100kg/h	150~200kg/h
length	21000mm	28000mm	43000mm
packaging	Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases.	Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases.	Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases.
The production cycle	20days	25days	35days
Port	Shanghai Port	Shanghai Port	Shanghai Port
Terms of payment	30% of the total amounts paid by T/T as deposit, the balane shall be paid by T/T or irrevoable L/C at sight before loading in our factory	30% of the total amounts paid by T/T as deposit, the balane shall be paid by T/T or irrevoable L/C at sight before loading in our factory	30% of the total amounts paid by T/T as deposit, the balane shall be paid by T/T or irrevoable L/C at sight before loading in our factory

The whole line consists of the following machines:
1. Dough Mixer /Dough biscuit machine/ Dough mixer for biscuit
2. Integrated forming machine for soft biscuit and hard biscuit
3. Salt/sugar spreading machine
4. Biscuit tunnel oven
5. Biscuit oil sprayer
6. Cooling conveyor for biscuit
7. Biscuit packaging machine
8. Biscuit filling machine (Optional for sandwich crackers)

V. Biscuit products:
Soft Biscuit:
Sandwich biscuit:
Hard Biscuit:
Biscuit mould:
IV: Workshop :
Contact:
Contact person: Ms Jenny (sales manager)



IDL will be your ideal choice

---
