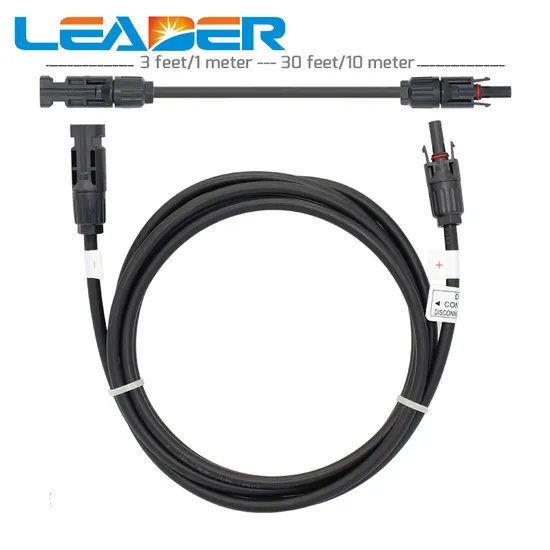

Solar Connector with 1-10 Meters 4mm2/6mm2 (12/10AWG) PV Extension Cable for Solar Panel

Product Description

1.Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007

2.No-haogen PV-Cable Type:
PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.

3. Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

4.Cable Characteristics

MODEL	PV1-F
Conductor	Tinned copper wire,class 5 (as per IEC 60228)
Insulation	No Halogen PO insulation
Sheath	No Halogen PO sheath
rated voltage	AC 0.6/1KV
	DC 1.8KV
Temperature range	-40°C~+90°C,dry/ humidity
Max.working temperature of conductor	120°C
During short circuit	200°C
Standard	EN 2PFG 1169

5.PV1-F Structure Parameter

type	Cross Sectional Area(mm2)	Conductor structure( Strand /mm)	diameter(mm)	insulation thickness(mm)	sheat thickness(mm)	cable diameter(mm)	DC resistance at 20°C(Ω/km)
PV1-F	1.5	48/0.2	1.6	1.0	0.8	5.2	12.2
PV1-F	2.5	77/0.2	2.0	1.0	0.8	5.6	7.56
PV1-F	4	56/0.3	2.6	1.0	0.9	6.4	4.7
PV1-F	6	84/0.3	3.2	1.0	0.9	7.0	3.11
PV1-F	10	77/0.41	4.4	1.0	0.9	8.2	1.84
PV1-F	16	119/0.41	5.5	1.0	1.1	9.7	1.16
PV1-F	25	189/0.41	6.5	1.2	1.2	11.3	0.734
PV1-F	35	244/0.41	7.5	1.2	1.2	12.3	0.529

Our sevices:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.
All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.
We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.
Company information:
LEADER ENERGY is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams,hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.

---
