CNC Rubber Sheet Cutting Machine

Product Description

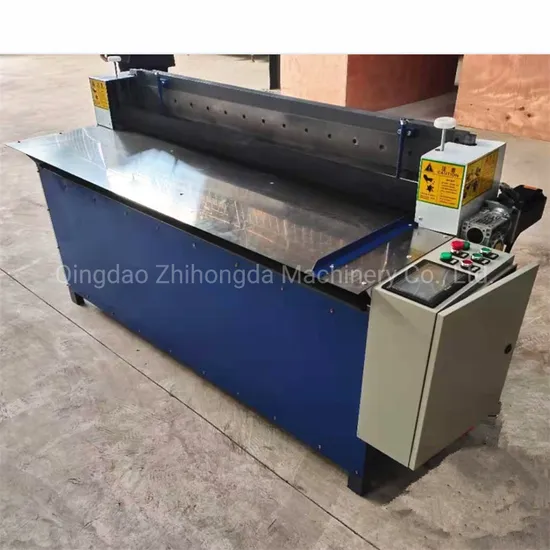

CNC Rubber Sheet Cutting Machine
Product introduction
Name: Rubber Sheet Cutting Machine
Model: CNC 1600
Descriptions
CNC Rubber Sheet Cutting Machine can be able to realize horizontal cutting for rubber. plastic and other non-metallic materials.
The equipment is composed of a cutter, cutter plate, slider, pull rod, feed shaft, main motor, feed motor, NUMERICAL control box and other important parts.
Technical parameters

Cutting width	Cutter length	Motor power	Max.Cutting thickness	Control mode
1600mm	1600mm	3 .0KW	25mm	CNC
Material of cutter	Knife stroke	Mi. Cutting width	Feed speed	Power supply
High speed steel 8211	75mm	0.1mm	Adjustable	Option

Product display
Rubber sheet sample testing:
We are cutting min.1mm wide according to the customer's requirement. very perfect!
Standard wood case for export shipping:
Features
CNC-type rubber cutting machine Features:
1.reasonable structure, advanced design, high degree of automation, fast response, anti-interference ability, high precision, one machine can replace dozens of workers manually cut
2.Using LCD digital operator interface in English, clarity, human-computer dialogue, directly enter the desired size, key to, not only simple and easy to master, but also to remember the number of jobs per day, to keep the production schedule
3.PLC programmable controller and stepper motor component feeding mechanism, feeding high precision, size can be adjusted.

---
