PVC High-Speed Mixer System Hot and Cool Mixers for Plastic Powder and Pigment

Product Description

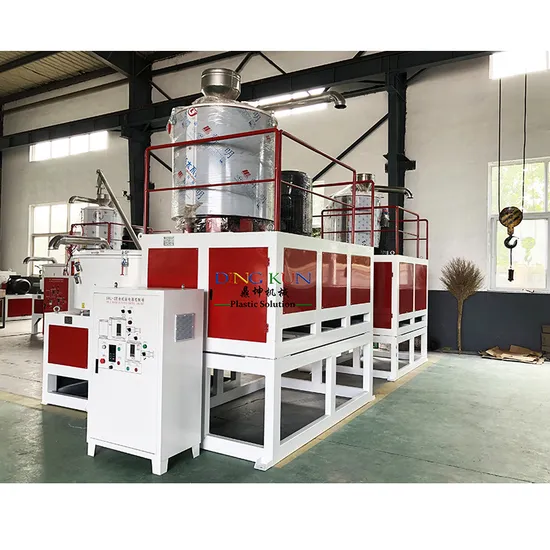

PVC high-speed plastic heating/cooling mixer unit
Product Description High speed mixers are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.
1,Plastic mixer can be used for a variety of plastic raw materials, mixing, drying and other processes.
2,The barrels and paddles are made of 304 stainless steel, mixing performance, long life, easy to clean.
3,Plastic mixer has two kinds of heating function.
4,It is equipped with a quick feeding device.
5,The opening of the lid is controlled by pneumatic and hydraulic systems.

Model	SRL- Hot/cool	SRL- Hot/cool	SRL- Hot/cool	SRL- Hot/cool	SRL- Hot/cool
Total cubage(L)	100/200	200/500	300/600	500/1000	800/1600
Effective cubage(L)	65/130	150/320	225/380	375/650	600/1050
Mixed speed (rpm)	650/1300/80	475/950/80	475/950/80	430/860/60	370/740/50
Heating& cooling manner	Electric heating self-friction/water cooling
Mixed time(min/batch)	8~12	8~12	8~12	8~12	8~15
Motor power(kw)	14/22/705	30/42/11	40/55/11	47/67/15	60/90/22
Dimension L×W×H(mm)	1950*1600*1800	4580*2240*2470	4800*2640*2480	4600*3000*4050	5170*3200*4480
Weight(kg)	2200	3400	3600	4800	6200

Detailed Photos
Packaging & Shipping
Company Profile
DINGKUN SERVICE *Before-sale:
Introduce products professional
Project engineering
*During manufacturing:
Provide layout and engineering conditions
Inform the schedule of production
Make sure the product designed in accordance with technical document
Test machine before delivery
Provide photos before shipping
*After-sale:
Build customers database. All machines are traceable.
Overseas installation, commissioning and training are available
Speed up service and spare parts supply.
Visit customers and make quality trace periodically

---
