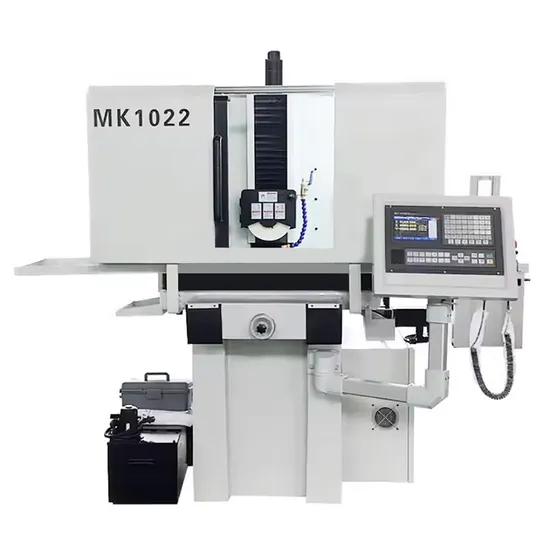

Automatic Surface Grinding Machine Cooling Motor 90

Product Description

Automatic Surface Grinding Machine Cooling Motor 90 Product Description



Application: * Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency
* The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working. Product Parameters

Item		Unit	M1224AHD	M1224NC2	M1224NC3	M4080NC3
Worktable size (L×W)		mm	600×300	600×300	650×300	800×400
Worktable traverse (L×W)		mm	640×320	640×320	670×320	840×420
Max. Grinding area (L×W)		mm	640×320	640×320	670×320	840×420
Number of T-slot		mm	1×14	1×14	1×14	1×14
Distance from worktable to spindle center		mm	490	490	490	580
Wheel size (OD×W×ID)		mm	300×30×75	300×30×75	300×30×75	350×40×127
Spindle speed		rpm	2850	1440	1440	1440
Worktable longitudinal speed		m/min	3-20	3-20	3-20	6-20
Table horizontal feed	Continous (Variable speed)	mm/min	150	150	150	150
	Intermittent (stepless)	m/time	0-5	0-5	0-5	0-5
	Handwheel rotates	mm	2.5	2.5	2.5	2.5
	Hanwheel each grid	mm	0.02	0.02	0.02	0.02
Vertical feed	Handwheel rotates	mm	2	2	2	2
	Hanwheel each grid	mm	0.01	0.01	0.01	0.005
Vertical MPG feed	The MPG Rotates	mm	0.1/1/10	0.1/1/10	0.1/1/10	0.1/1/10
	MPG each grid	mm	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1	0.001/0.01/0.1
Spindle motor		kw	4	4	4	5.5
Worktable cross feed motor		kw	0.06	0.06	0.06	0.06
Worktable servo motor(Left-Right)		kw	---	---	0.75	0.75
Worktable servo motor(Front-Back)		kw	---	0.75	0.75	0.75
Vertical feed servo motor		kw	0.75	0.75	0.75	0.75
Cooling pump motor		kw	0.04	0.04	0.04	0.04
Hydraulic motor		kw	1.5	1.5	1.5	2.2
Working pressure		mpa	3	3	3	3
Fuel tank capacity		L	80	80	80	100
The maximum flow		L/min	18	18	18	18
Surface parallelism		mm	300/0.003	300/0.003	300/0.003	300/0.003
Surface roughness		um	Ra0.63	Ra0.63	Ra0.63	Ra0.63
G.W./ N.W.		kg	1500/1400	1500/1400	1500/1400	2000/2000
Packing size (LxWxH)		cm	200×170×210	200×170×210	200×170×210	230×198×210

M1224AHD	M1224NC2	M1224NC3	M4080NC3
Vertical: AC servo motor	Vertical: AC servo motor	Vertical: AC servo motor	Vertical: AC servo motor
Cross: Motor	Cross: AC servo motor	Cross: AC servo motor	Cross: AC servo motor
Longitudinal: Hydraulic	Longitudinal: Hydraulic	Longitudinal: AC servo motor	Longitudinal: AC servo motor
Controller: GS-PLC Touch	Controller: GS-PLC Touch	Controller: GS-PLC Touch	Controller: GS-PLC Touch

Detailed Photos
MAGNETIC CHUCK
Standard with pemanet magnetic chuck, easy operate, save much time. It can tighten many parts
and even small parts.
LONGITUDINAL HYDRAULIC
Table longitudinal move,drived by motor.
RAPID LIFTING
Grinding head verticalmove can be adpoted
with power rapid move or hand mocro feed.
OPERATION PANEL
Table moving,auto feed,other operate can be con-
trolled by these buttons and handles.
GRINDING WHEEL
large grinding volume, can grinding various planes
and comples forming surfaces.


Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

---
