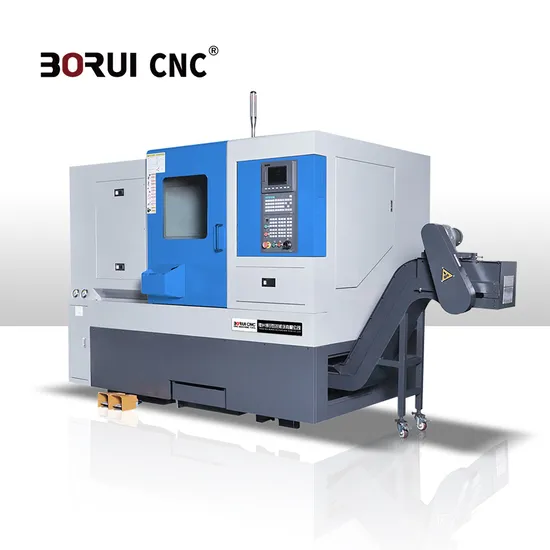

Br-160L 4 Axis Slant Bed CNC Lathe Machine Linear Guide Way Slant Bed CNC Lathe Machine

Product Description

BR-160L Linear Turning Milling Automatic Slant Bed cnc Lathe Price

Product Description
Features:
1. The series CNC lathe is designed with high strength, rigidity and with advanced machine structure, defense,and security.
2.The machine adopt the high rigidity cast iron, base and lathe bed monolithic structure, high precision through-hole structure, vibration resistance designed and high range spindle motor.
3.The bearings and feeding screw adopt the world famous brand, equipped with multi-position tool post, tools are easily changed and changed fast with high precision.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

Product Parameters

	Item	BR-160L	BR-160LA	BR-160LD	BR-160LAD	BR-160LDY	BR-160LADY
Main Parameter	The max.swing diameter over bed	Φ460		Φ460		Φ500
	Max. machining diameter	Φ400		Φ350		Φ400
	Max. swing diameter over cross slide	Φ200		Φ200		Φ200
	Max. processing length	410mm	390mm	350mm	330mm	370mm	330mm
Spindle And Chuck	Spindle end type	A2-5	A2-6	A2-5	A2-6	A2-5(6 ″)	A2-6(8 ″)
	Spindle motor power	7.5KW	11KW	7.5KW	11KW	7.5KW	11KW
	Spindle speed	4500rpm	3000rpm	4500rpm	3000rpm	4500rpm	3000rpm
	Spindle through hole diameter	Φ56	Φ66	Φ56	Φ66	Φ56	Φ66
	Through the bar diameter	Φ46	Φ52	Φ45	Φ52	Φ45	Φ52
Feed	X/Z axis lead screw specification	3210/3210		3210/3210		3210/3210
	Y axis lead screw specification					2508
	X/Z axis linear guide specifications	35/35		35/35		35/35
	Y axis linear guide specifications					25
	X/Z axis limit travel	210/475		210/475		210/475
	Y axis limit travel					60(±30)
	X/Z axis motor torque	11N.M/11N.M		11N.M/11N.M		11N.M/11N.M
	Y axis motor torque					7 N.M
	X,Z axis connection type	Direct connection		Direct connection		Direct connection
Turret	Turret	80825		BMT45/ER20
	Tower station	8T/10T/12T		12T		12T
	Power tower					Y-axis power tower
	Power head specification					BMT40/ER20
	Power head speed					4500rpm
	Power head motor					2.5Kw
	Power head to motor transmission ratio					1∶1
	Turret center height size	80mm		80mm
Tailstock	Sleeve diameter	65mm
	Sleeve travel	80mm
	Tailstock travel	300mm
	Tailstock sleeve taper	MT4
Overall Dimension	Bed type and inclination	Integrated/30°		Integrated/30°		Integrated/30°
	Machine size(L * W * H)	1730×1273×1328		1730×1273×1328		1730×1473×1700

Details Display

Packaging & Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
