Glass Yarn Anti Rodent GYFTY 96core Underground Duct Fiber Optic Cable

Product Description

GYFTY ANTI RODENT ALL DIELECTRIC OUTDOOR UG DUCT FIBER OPTIC CABLE
Fiber Counts: 2-288 Cores
Fiber Type: Single-mode fiber G652D
CSM(Central Strength Member): FRP
Anti Rodent Material: Glass Yarn
Buffer: Loose Tube PBT
Waterproof: Water Blocking Yarn & Tape
Sheath: MDPE/HDPE
Span customized: 80/100/120/150/200/300/400m etc.
Drum Length: 2km/3km/4km
Application:
Underground duct laying, Non Self-supporting Aerial Installation
Product Parameters

Item	Value
Fiber Counts	12	36	96
Tubes	2	6	8
Tube Material	PBT
Fiber Count/ Tube	6	6	12
Fiber Identification	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	2.0±0.1 mm	2.0±0.1 mm	2.3±0.1 mm
Thickness of Tube	0.30±0.05 mm	0.30±0.05 mm	0.35±0.05 mm
Color of Tube	Blue Orange	Blue Orange Green Brown Grey White	Blue Orange Green Brown Grey White Red Black
FRP	2.2 mm	2.2 mm	2.5 mm
PE Coated	-	-	3.8 mm
Water Blocking Material	Water Blocking Yarn and Water Blocking Tape
Ripcord	Polyester * 2-Red
Peripheral Strength Member	Glass Yarn
Thickness of Sheath	Nominal 1.8 mm
Sheath Material	HDPE
OD of Cable	10.5±0.3 mm	10.5±0.3 mm	12.7±0.3 mm
Cable Weight	85 kg/km	82 kg/km	112kg/km

Features:

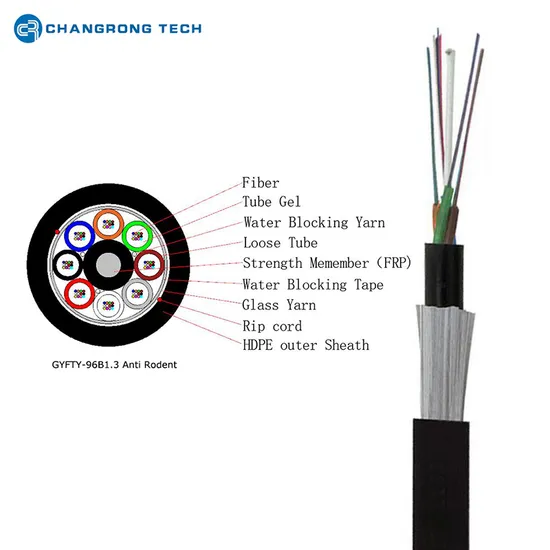

The fibers are positioned in a loose tube made of PBT filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Water blocking yarn and tape as water blocking compound around the cable core, then the glass yarn armored longitudinally outside. Finally a PE jacket is extruded.
• Good mechanical and thermal performance
• Tube gel ensures critical protection of fiber
• Stranded structure eliminating contraction of tubes
• Rugged, durable PE jacket protection against UV radiation, fungus etc.
• Crush resistance and light weight with flexibility
• Non-metallic, Anti-electromagetic interference
• Water-blocking measures :
- Loose tube gel-filled
- Water blocking yarn and water blocking tape
• Anti Rodent: glass yarn
Certifications
ISO 9001, ISO14001, ISO45001 Certified FactoryOwn laboratory has passed the CNAS Certification
Our Advantages
50 sets of Optical Cable Testing Equipment:
Packing & Shipping
Drum Packing:
Shipping:
Company Profile
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd, located in Tianchang City, Anhui Province, very near to Nanjing and Yangzhou cities; with total area of 230,000 Sqm, is one of the high-tech enterprises specialized in R&D, production and sales of optical fibers and cables. ISO9001, ISO14001, ISO45001 certified.
Equipped with 9 cutting-edge fiber drawing towers and 18 production lines, an annual production capacity of 15 million Fiber Kilometers, own lab with advanced equipment introduced from France, Japan and United States, Changrong is devoted to achieving the best solutions for customers. Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Micro duct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A, GYFTC8Y, GYFTC8S, GYFXTC8Y
Direct Burial Installation Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH, GJYXFCH
Welcome to contact for more information!
