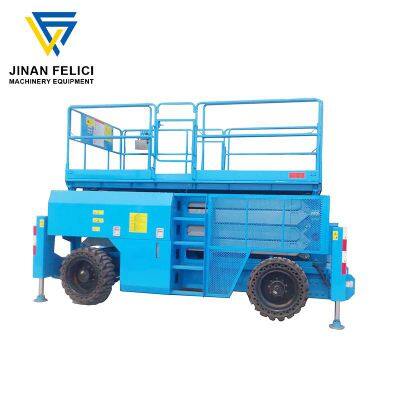

Introduction: The characteristics of this high-altitude lifting platform are flexible, convenient and fast. You can use the scissor work platform instead of scaffolding to reach the height you need. Mobile aerial platform is suitable for continuous high-altitude operations in airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, mines and workshops.
GTJZ scissor aerial work platform characteristics(1)Security certification
Conform to the EU EN280 standard and obtain CE certification.
(2)Walk when working at heights
GTJZ mobile aerial lift has the function of automatic walking. It can walk fast and slowly under different working conditions. Only one person can operate the machine to continuously complete lifting, advancing, retreating, steering and other actions when working at heights.
Compared with traditional hydraulic platforms, scissor platform lift greatly improves the working efficiency, reduces the number of operators and labor intensity.
(3)Security protection
A level alarm is installed on the machine. When the vehicle inclines more than 3 degrees in all directions, elevating work platforms lift will automatically enter the protection system. Only the machine is allowed to descend, and can be used normally after it reaches a safe state. GTJZ scissor work platform is equipped with oil pipe explosion-proof system at each oil cylinder.
(4)Stepless speed change
GTJZ mobile elevated platform only needs one person to operate, all actions are controlled by operating handle on the workbench, and the motor is infinitely variable. The service life of the battery and the motor is effectively extended, and the motor only consumes energy during operation.
The walking hydraulic system adopts a closed variable pump control system, which effectively provides system efficiency. When the boom is in any position, the scissor work platform can walk safely; The walking speed decreases with the increase of lifting height.
(5)Control system
●The upper and lower consoles (ground console and platform console) are set, and the upper and lower consoles are switched by reversing switch. Lock the lower console when the upper control is used.
●The platform is equipped with a foot switch, which can only be operated by stepping down.
●The upper and lower consoles are equipped with emergency stop buttons, which can enable the operator to quickly cut off all actions and prevent the platform from continuing to move in case of unexpected operation.
(6)Disc brake system
GTJZ EWP scissor lift adopts a hydraulic disc brake system. When the machine is stopped, the wheels are always in the braking state and can be reliably braked on a 6 degree slope.
(7)Extension platform
The mobile boom lift can be moved out, expanding the scope of work and meeting the special needs of some users.
(8)Overload protection
Mobile aerial lift from Felici has overload protection function, and has mandatory protection function for personnel unfamiliar with this equipment.
(9)Self diagnosis function
With the self diagnosis function, the customer can quickly grasp the working state of the equipment and better maintain the equipment.
(10)Identification
The identification is clear and the meaning is clear.
(11)Emergency device
The hydraulic work platform is equipped with an emergency descent system.
>>
