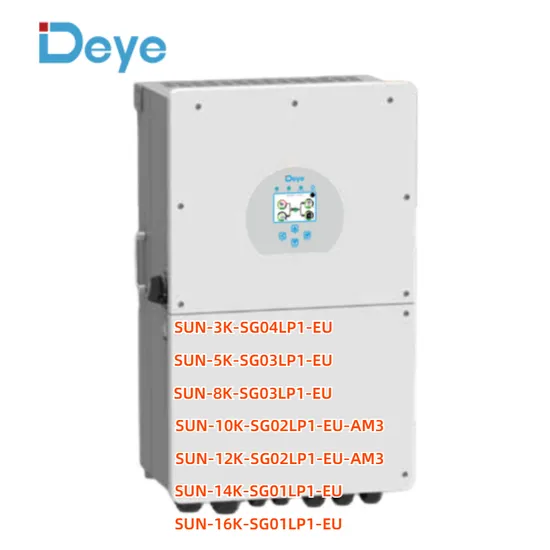

Deye 14kw 16kw Inverter Sg01lp1-EU Hybrid Inverter Low Voltage Sg02lp1 10kw 12kw Single Phase High Quality Inverter

Product Description

Product Description
1. Colorful touch LCD, lP65 protection degree
2. DC couple and AC couple to retroft existingsolar system
3. Max,16pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
4. Max, charging/discharging current of 190A
5. 6 time periods for battery charging/discharging
6. Support storing energy from diesel generator 1. Colorful touch LCD, IP65 protection degree
2. AC couple to retroft existing solar system
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
3. Max, charging/discharging current of 250A
4. 6 time periods for battery chargingsdischarging
5. Support storing energy from diesel generator1. Colorful touch LCD, lP65 protection degree
2. AC couple to retroft existing solar system
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
3. Max. charging/discharging current of 290A
4. 6 time periods for battery charging/discharging
5. Support storing energy from diesel generator
Product Parameters

Model	SUN-12K-SG01LP1-EU	SUN-14K-SG01LP1-EU	SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	220	250	290
Max. Discharging Current (A)	220	250	290
External Temperature Sensor	YES
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	15600	18200	20800
Max. DC Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated DC Input Voltage (V)	370
PV Input Current (A)	26+26+26
Max. Input Short-Circuit Current (A)	44+44+44
No. of MPP Trackers/ No. of Strings per MPP Tracker	3/2+2+2
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range (ºC)	-40 to +60ºC, >45ºC Derating
Cabinet Size (WxHxD mm)	464×763×282 (Excluding Connectors and Brackets)
Weight (kg)	48.5
Noise (dB)	≤30 dB

Certifications
