Soome High Quality 2ply Corrugated Paperboard Production Line with Good Price

Product Description

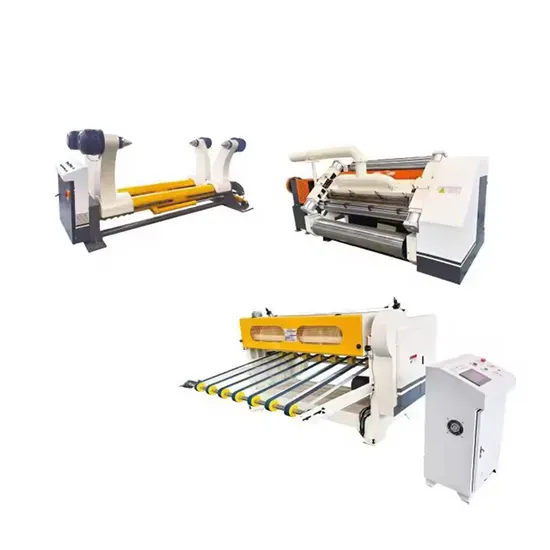

Electric Mill Roll Stand 1.Machine Description: *This machine is used for supporting the paper roll, supply the paper to the production line 2.Machine Function: *It can be loading two paper rolls at the same time, without stopping the machine for changing paper roll *The whole machine moving use 5 motor fully electric controlled, electric control arm lift and down, clamping and open, left and right moving *Tension control: manual or pneumatic discbrakes *The chuck adopt inner expansion type or teeth type, reduce the destruction of the paper core. saving paper

Max. Working Width	1800mm
Min. Working Width	800mm
Max. Paper Mill Dia	1400mm
Max. Working Pneumatic Pressure	0.6-0.9Mpa
Max. Supporting Weight (One side)	2T
Clamping Motor Power	550W*4pcs
Lifting Motor Power	1.5KW

Electrical Heating Single Facer 1.Machine Description: *Single facer is design for producing single-face corrugated paper

Working Width	1800mm
Design Speed	60m/min
Working Speed	40m-60m/min
Pneumatic Source Pressure(Mpa)	0.4---0.8Mpa
Main Drive Motor	7.5KW
Suction Motor	7.5KW

1800 Type sheet cutter machine Machine Description: 1.The sheet cutter adopts light dynamic balance cutter shaft to make the machine run more stable, and the
blade is inlaid with front steel blade. 2.Feeder paper roller upper roller is the rubber roller,lower roller is the anilox roller.
3.Main machine wallboard adopt high grade gray cast iron, high strength, strong vibration resistance. 4.INVIT Frequency conversion controller, 5.7 inch color touch screen display. 5.Length :200 mm-2000mm, Cutting accuracy :±1.5 mm. Technical parameters: ★Work wide size:1800mm Machine speed :60m/min ★Min.paper cut length:200mm Max.paper cut length:2000mm Paper cut accuracy:uniform ±1.5mm Power motor and electrical parameters: ★Paper cutter shaft motor power:4.0KW ( frequency control )
★Feeder paper rubber roller motor power:2.2KW( frequency control ) FAQ
1. Q: Are you a manufacturer, trading company or a third party? A: We are a manufacturer, located in South of Dongguang county, Cangzhou city,Hebei province,China.Warmly welcome to visit our company. 2. Q: How about the after-sale service? A: 1) TM online for 24 hours, also contact by email, wechat, skype, Facebook, whatsapp, etc. 2) To solve the problems with videos/pictures. 3) One year warranty for spare parts change.
Q. Your company is a manufacturer or a foreign trade company? Yes. We are manufacturer. SOOME carton machinery co., Itd is specialized in the production of packaging(carton)machine Machineryand equipment manufacturers, main product packaging(carton,carton)mechanicalequipment,printing Machine,slottingmachine,die cutting machine, gluing machine, paper dividing machine, box pasting machine,corner cutting machine. Q. Which payment can offer? We can accept the payment by T/T, L/C, Western Union, Paypal,Private Account, Cash,and others. Q. How can you guarantee the products's quality? We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process. In the whole process, to after many test, and finally after shipment inspection, the products leave the factory. Q. Why choose a carton packaging machine? Safe, environmentally friendly, resource recycling, the important is on boxin carton packaging to ensure quality and cost-effective. Q. How is your after sales service? We can offer good technical support and good warranty for you after sales as professional manufacturer.

---
