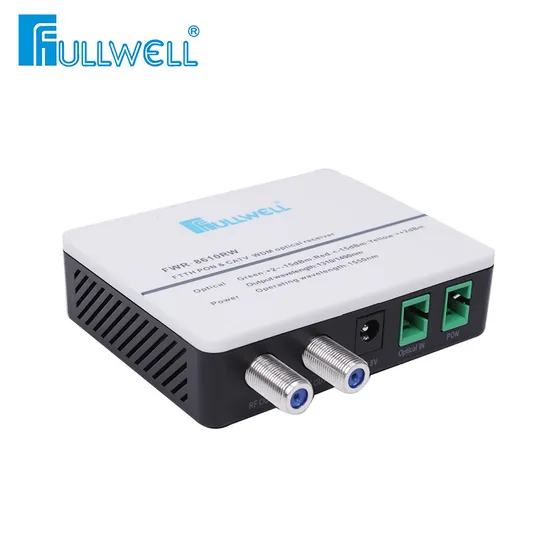

FTTH Indoor Wdm Optical Receiver Mininode Optic Node Sc/APC with 2 RF Outputs

Product Description

FWR-8610RW, WDM Optical Receiver
Product Description
The WDM optical receiver is based on HUAWEI and FULLWELL in 2013 to create a smart hotel solution: a convenient, safe and easy-to-maintain network construction solution that carries hotel voice, broadband Internet access, CATV and other information on a single network. With its industry-leading triple play equipment, FULLWELL has produced a series of telecommunication-grade products of WDM optical receiver.
FWR-8610RW WDM optical receiver adopts high isolation and WDM technology to separate CATV and ONU signals, which can meet FTTH requirement of CATV + XPON or XG (S) -PON optical network, receiving 1550nm CATV signal and PON output signals (1310 / 1490nm & 1270 / 1577nm).
FWR-8610RW WDM optical receiver uses high-bandwidth and high-sensitivity photocells, low-noise matching circuits, GaAs amplification, low optical power receiving and RF-AGC technology. Receiving power range from -18 to + 2dBm, Light control AGC: -12~-2dBm, RF rated output 82dBuv, and there is also an optical power receiving monitoring LED indicator (≥-15dBm) on the panel. Industry-leading 5V power adapter, non-stop work design for more than 5 years, FWR-8610RW is an ideal WDM optical receiver for FTTH single fiber to home network.
Product Feature
PIN optical receiving power, -1dBm receiving sensitivity, AGC receiving range: -2 ~ -12dBm, output stable level: 82dBuv.
Wide bandwidth type: 47 ~ 1000MHz working bandwidth.
One fiber can receive long-range CATV RF signals and PON output signals (1310 / 1490nm & 1270 / 1577nm) at the same time.
It can be used along with the FULLWELL optical transmitter and WDM EDFA for FTTH triple play transmission and coverage.
Industry-leading 5V power adapter, non-stop work design for more than 5 years.
Can be compatible with any FTTx PON or customized XGS-PON triple play optical network.
Plastic enclosure with white top cover and black base, exquisite texture appearance, to demonstrate brand strength.
Technical Parameters

Items	Unit	Parameter
Input Wavelength	(nm)	1310,1490,1550 (Customized 1270/1577nm)
Output Wavelength	(nm)	1310,1490 (Customized 1270/1577nm)
Operation Wavelength	(nm)	1540~1560
Channel Separation	(dB)	≥40 (1310/1490nm and 1550nm)
Responsivity	(A/W)	≥0.9
Receiving Power Range	(dBm)	+2~-18
Reflection Loss	(dB)	≥55
Fiber Link	/	SC/APC
PON Link	/	SC/UPC (Optional SC/APC)
Bandwidth/Flatness	MHz/dB	47-1000/≤±1
Output Level	dBuv	1 RF	AGC: 82±1/(-2~--12dBm)
		2RF(Optional)	AGC: 78±1/(-2~--12dBm)
Adj. Range of Output Level	dB	0~15(Customized)
Reflection Loss	dB	≥14(75Ω Characteristic Impedance)
RF Output Interface	/	1 Way Output Male (or Two-Way Output or Female)
CNR/MER	dB	≥44/34(PAL-D 60CH, OMI3.8%, -9dBm)
CTB/CSO/HUM	dB	≥65/≥60/≥60(-1dBm Receive)
Power Supply/Consumption	V/W	AC100~240V→DC5/3
Working/Storage Temperature	ºC	-35~50/-40~75 (Humidity 5~90%)
Dimension	mm	95×92×23

Product Model Series
FWR-8610RW, WDM optical receiver, customized items are as follows:

RF Output Interface	Output Level Adjustable	Model	PON Interface to ONU
1RF	--	FWR-8610RW	SC/UPC (Optional SC/APC)
	ADJ	FWR-8610RW(ADJ)	SC/UPC (Optional SC/APC)
2RF	--	FWR-8610RW(2*RF)	SC/UPC (Optional SC/APC)

If you have another question, please feel free to contact me directly as below:
Hangzhou Fullwell Optoelectronic Equipment Co., Ltd
Add:A2-1305,Qimeng Science & Innovation Park,No.1899,Gudun Road,Hangzhou, China
Contact person: Leo Yao
"Design and manufacture the most reliable and efficient FTTH CATV equipment products in the industry."

---
