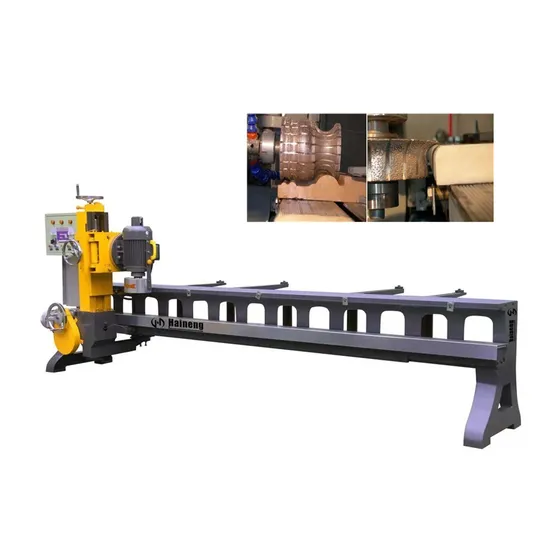

Multi-Performance Stone Edge Profiling Machine

Product Description

Product Description
This machine with hermetically oil-sealed composite track. It is glued with the wheels of non-polishing material, which extend the service life greatly. It can process each kind of linear-shaped and outside curved-shaped and inner hole edge function. The head of grinder 360°free rotating, pack up saw blade can groove and cut. Moving automatically, semi-automatically and manually. It is high in machining precision, and greatly enhanced the working efficiency.
Product Parameters

Max.cutting length	mm	3000(3500)
Max.cutting thickness	mm	150
Grinding disk diameter	mm	140-160
Blade diameter	mm	160-180
Main motor power	kw	5.5
Gross power	kw	5.75
Exhausted water	m³/h	1.5
Gross weight	kg	1000
Overall dimension(L×W×H)	mm	3860(4310)×2250×2300

Processing
Packaging & Shipping
Partial Control Element
Company Profile
Certifications
ExhibitionMarketing SystemCompany information After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ? A:1 set. Q:How's your machine's quality? A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions. Q:What's the warranty time? A:The whole machine is guaranteed for one year, including electrical components and mechanical parts Q:Whether the machine can be customized according to our requirements? A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.

---
