Flat Die Board Laser Cutting Machine Die Cutting Creasing Plywood Die Making

Product Description

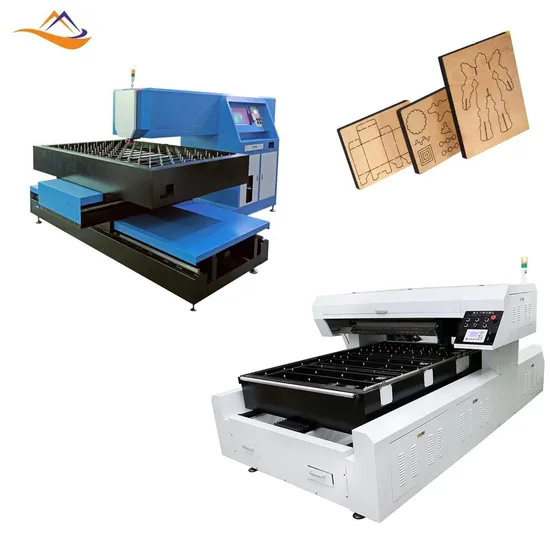

Polywood Die Board Laser Cutting Machine & Auto Bender Machine For Die Cutting
1,400W / 600W can be a single head laser cutting die cutting machine cutting 18mm and 22mm board laser cutter template,6-9mm PVC rubber sheet(add oxygen can cut iron plate ,stainless steel,13mm can do blister knife template ,high efficiency ,uniform kerf ,consistent ,the precision error is less than 0.1mm. Maintenance is simple. Do not need gas. Equipment structure is compact .Need small area to install it. The cabinets are made of high quality cold-rolled steel plate,An external power source 220V. and low cost. Technology of simple knife adjustment ,cutting software and AutoCAD ,CorelDraw, Adobe Photoshop can compatible edit the path manual operation. maintenance cost is low. greatly saves the production cost of laser cutting die.
2,Adopt the most advanced 400W / 600W C02 sealing type water-cooled laser tube combined with precision up to 0.05mm of numerical control mechanical systems. Not only Get The precision of laser die making, But also reduce the costs of laser die making. Suitable for wooden board laser die cutting and precision electronic laser die making. Adopt gantry structure ,to avoid the optical path deviation size problem that high power laser machine has.
3,Do not need to add any auxiliary gas to cut, laser cutting die consumption is extremely low. an external power source 220V is ok. And no opening preparation delay. The cutting costs is only 5 RMB/Hour
4,Can do one-time cutting 1mm-22mm wooden board, Plastic board, organic glass, Acrylic board at speed of 25-30m/h. And the machine can cut the gap at 0.45mm, 0.71mm, 1.07mm, 1.42mm and so on at uniform cutting kerf width also up and down seam.

Technical Parameters
Transmition	High Precision HIWIN Screw guide
Laser Type	CO2 direct-current stimulated glass laser
Server Motor	Inovance high precision server motor
Re-positioning Precision	+-0.02mm
Cutting Precision	+-0.01mm
Cutting Board Thickness	1-25mm poly wood (Cut 1.5mm stainless steel board and 3mm Normal steel when Add oxygen gas)
Cutting Speed	1-35m/h (18mm wooden board) 1-30m/h(18mm wooden board)
Pneumatic parts:	Taiwan-- AirTag
Best Files format	DXF,DWG,AL,CDR,PLT (Auto Cad, Core Draw)
Cutting Size	X-axis travel length: 1200mm Y-axis travel length : 1800mm
Power	4kw 220V/ 60HZ 50HZ
Laser Power	400W Single Header
Work Temperature	0-45ºC
light-dimmer	1 Pcs
Tool	1 Sets of tool box
Focus Len	1 Pcs of
Laser Tube	1 Pcs of QT 400W laser tube
high efficiency air filter	1 Sets
Smock Exhaust fan	1 Pcs
Water Cooling	CW-6000
Warranty	12 month (except laser tube and lens)
Weight	2000kg	Overall Size	3400*2300*1500

Machine Details:
>>> Our Services
1. Our machine is guaranteed for one year, not including normal consuming parts.
2. 24 hour technical support by email or calling .
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.
5. We supply 1 year warranty and life-Long engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Any more product information, please contact us ! Customer Needs is my Pursuit !

---
