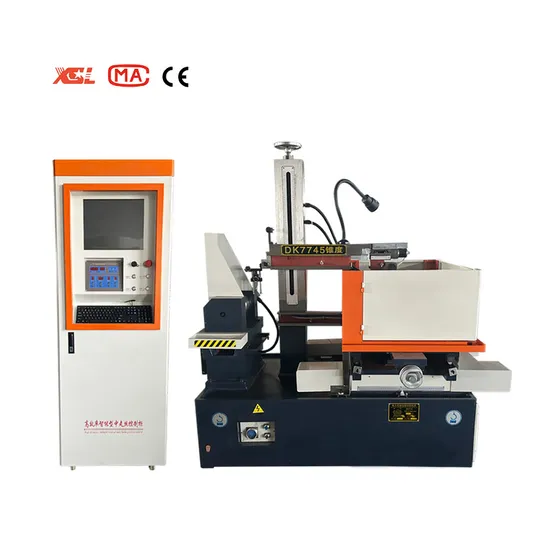

Precision EDM Wire Cutting Machine with 1-Year Warranty on Parts

Product Description

Product model	DK7720	DK7735	DK7745F	DK7745	DK7750
Worktable stroke (mm)	420*270	710*480	920*540	810*570	950*650
Table travel (mm)	200*250	350*450	450*700	450*550	500*630
Machining height (mm)	200	480	480	480	600
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	100	300	450	450	700
Main machine external dimensions (mm)	1160*810*1300	1240*1170*1400	1700*1600*1600	1600*1240*1400	1720*1680*1700

Product model	DK7750F	DK7763	DK7763F	DK7780	DK77100
Worktable stroke (mm)	1140*650	1140*750	1350*750	1350*985	1700*1170
Table travel (mm)	500*800	630*800	630*1000	800*1000	1000*1200
Machining height (mm)	400/600	600	600/800	600	1000
Machining taper (mm)	6°,15°,30°/80
Cutting speed (m/min)	≥120
Surface roughness/finish(um)	≤2.5
Electrode wire diameter (mm)	0.1-0.2
Electrode wire fixed line speed (m/s)	11.5
Processing accuracy	According to GB7926-2005 standard≤0.02mm
Table movement pulse equivalent (mm)	0.001
Power supply	50Hz.380V
Machine tool power consumption (KVA)	<1.0
Workpiece weight (KG)	700	1000	1000	2000	2600
Main machine external dimensions (mm)	2000*1900*1700	2100*1940*1780	2300*2200*1800	2600*2400*1800	3000*2800*2500

Company Profile
Jiangsu Sanlin Technology Equipment Co., Ltd. Jiangsu Sanlin Technology Equipment Co., Ltd. stands proudly as a pioneering high-tech enterprise, expertly weaving together production, research, development, and sales of elite CNC machinery and equipment. With decades of expertise in the equipment industry, our company has established a formidable reputation. Our expansive product line includes: vertical machining centers, high-speed machines, gantry machining centers, drilling and tapping centers, engraving and milling machines, gantry engraving and milling machines, medium wire cutting machines, fast wire cutting machines, small hole machines, sanding machines, among others. These meticulously crafted machines, known for their impeccable quality and precision, have earned the unyielding trust and admiration of our clientele. Our state-of-the-art equipment is indispensable across critical industries such as automotive, aerospace, national defense, medical food machinery, rail transit, and metal mold manufacturing. While our products are cherished nationwide, their superior performance has also captivated markets in Southeast Asia, Europe, Africa, and beyond. At Sanlin, we relentlessly pursue perfection, striving to continually deliver exceptional products. We warmly invite customers and friends to explore opportunities for collaboration with us!
Frequently Asked Questions (FAQ)
A: We are indeed the manufacturers, and we cordially invite you to explore our factory in person. A: To select the ideal machine, first align the worktable travel and cutting thickness with the workpiece dimensions to find a suitable model. Then, verify whether the precision and surface finish align with your specifications; our TRS series machines excel in both areas, offering superior precision and outstanding finishes. A: Yes, just let us know the voltage you require, and we can make the necessary adjustments. A: We offer complimentary replacement of damaged parts within the warranty period, and replacements at cost price thereafter. Should any issues arise, we are committed to swiftly providing solutions through video demonstrations or other effective methods.Q: Are you a manufacturer or a distributor? Q: How do I choose the machine that best suits my needs? Q: Our country's voltage is three-phase 220V (or single phase 220V, or another voltage). Can the machine's voltage of three-phase 380V be adjusted? Q: What does your after-sales service entail?

---
