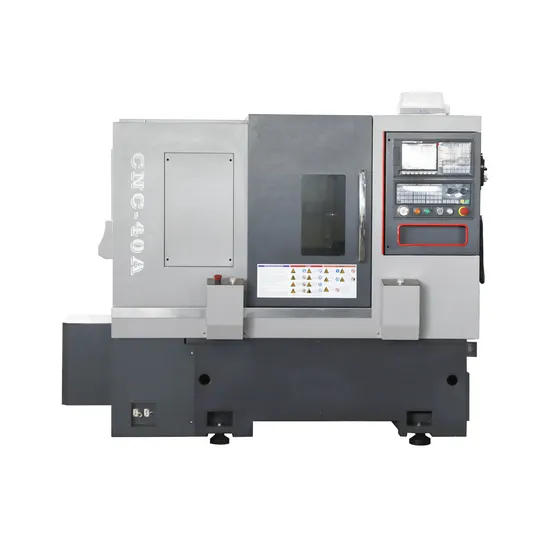

Hot Selling Heavy Cutting Machine Model Line Rail Slant Bed CNC Lathe Machine (row knife) Suitable Processing Metal

Product Description

High efficiency and durable heavy duty cutting line rail incline bed CNC lathe machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
In line with the space-saving lathe designed for precision machining of small parts, the spindle motor uses variable frequency motor or servo motor, with small size, large stroke, high spindle speed, high feed accuracy, easy operation, easy maintenance, smooth chip removal and other advantages, making it a real success of the ultra-small CNC lathe. In the field of high-precision small parts processing has changed the status quo of having to rely on imported machine tools.
1. The spindle of the machine tool adopts the spindle unit, which has high rotation accuracy to ensure the high rigidity and lasting accuracy of the spindle.
Greatly improve production efficiency. Optional imported spindle unit, spindle runout <2um.
2. feed shaft full servo drive, using imported ball screw, to ensure processing accuracy and long-term accuracy.
3. the bed base jointed casting, enhance the modular design and manufacturing of the machine tool, the overall structure is tight, cost-effective.
Product Parameters

project		unit	reference data
scope of work	Max.turning diameter	mm	450
	Max.machining diameter of the pallet	mm	120
journey	Max. Stroke X-axis	mm	380
	Max.Stroke Z-axis	mm	380/*TURRET250
principal axis	Spindle through hale diameter	mm	56
	Pull tube through hole diameter	mm	46
feed	Fast moving speed X-axis	mm/min	25000
	Fast moving speed Zaxis	mm/min	25000
other	Spindle speed range	r/min	50-4500
	Clamping method	-	Hydraulic chuck/*chuck
	Tool holder type	-	Tool post/TURRET
	Main motor power	Kw	5.5Kw
	Tailstock	-	no
	Dimensions(L*W"H)	mm	1850x1600x1550
	Weight (about)	T	about2.4

Detailed Photos

hot selling product
https://haochenmachine.en.made-in-china.com/product/GOJfhBAYaMTN/China-Hot-Selling-Heavy-Cutting-and-Cutting-Machine-Model-Line-Rail-Slant-Bed-CNC-Machine-row-knife-Suitable-for-Processing-Metal.html?pv_id=1if2bpsek3be&faw_id=1if2bptrt2f
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.

---
