Basic Info.
Cooling Method
Air Cooled
Output Type
AC Three Phase
Conditions of Use
Trailer Type
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Rated Voltage
220V, 230V, 240V, 440V, 460
Power Plant Engine
Original
Optional Type
Open or Silent Type
Alternator
Stanford/Marathon
Rated Current
264AMP-864AMP
Transport Package
Wooden Case or Naked
Production Capacity
10000PC/Year
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 100.00cm
Package Gross Weight
200.000kg
Product Description
Product Description
Product Description

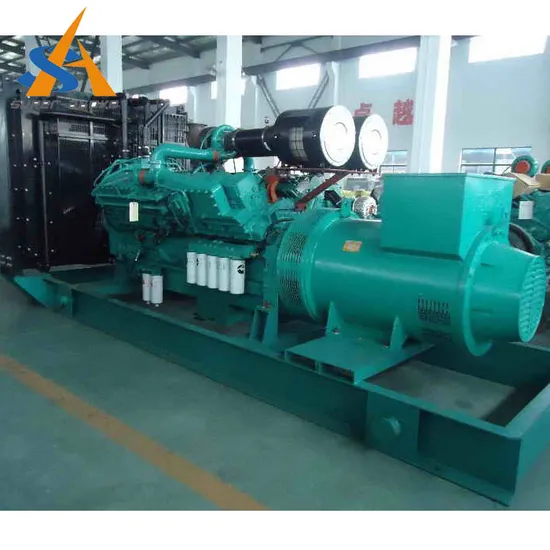

Powered by engines
50Hz, 3 Phase 4 Wire, 1500RPM, 400V, 7KW-1800KW, engine, with Italy Mecc Alte alternator, UK Deepsea controller.
High quality and global warranty.
ZCDL-P series---50Hz (7KW-20KW)
Powered by engines, high reliable and competitive price, matched with Italy Mecc Alte alternator--
-2 year no time limited warranty alternator
Genset Model List
Genset
Model
(50Hz) | Genset Power (KW) | Diesel Engine |
| Prime | Standby | Model |
| ZCDL-P8 | 7 | 8 | 403A-11G |
| ZCDL-P8 | 7 | 8 | 403D-11G |
| ZCDL-P11 | 10 | 11 | 403A-15G1 |
| ZCDL-P11 | 10 | 11 | 403D-15G |
| ZCDL-P13 | 12 | 13 | 403A-15G2 |
| ZCDL-P17 | 16 | 17 | 404A-22G |
| ZCDL-P17 | 16 | 17 | 404D-22G |
| ZCDL-P22 | 20 | 22 | 404D-22TG |
ZCDL-P series---50Hz (24KW-80KW)
Powered by engines, high reliable and competitive price, matched with Italy Mecc Alte alternator--
-2 year no time limited warranty alternator
Genset Model List
Genset
Model
(50Hz) | Genset Power (KW) | Diesel Engine |
| Prime | Standby | Model |
| ZCDL-P26 | 24 | 26 | 1103A-33G |
| ZCDL-P40 | 36 | 40 | 1103A-33TG1 |
| ZCDL-P52 | 48 | 52 | 1103A-33TG2 |
| ZCDL-P57 | 52 | 57 | 1104A-44TG1 |
| ZCDL-P70 | 64 | 70 | 1104A-44TG2 |
| ZCDL-P70 | 64 | 70 | 1104C-44TAG1 |
| ZCDL-P88 | 80 | 88 | 1006TG2A |
| ZCDL-P88 | 80 | 88 | 1104C-44TAG2 |
ZCDL-P series---50Hz (109KW-200KW)
Powered by engines, high reliable and competitive price, matched with Italy Mecc Alte alternator-
--2 year no time limited warranty alternator
Genset Model List
Genset
Model
(50Hz) | Genset Power (KW) | Diesel Engine |
| Prime | Standby | Model |
| ZCDL-P120 | 109 | 120 | 1006TAG |
| ZCDL-P132 | 120 | 132 | 1006TAG2 |
| ZCDL-P158 | 144 | 158 | 1106A-70TAG3 |
| ZCDL-P158 | 144 | 158 | 1106C-E66TAG4 |
| ZCDL-P176 | 160 | 176 | 1106A-70TAG4 |
| ZCDL-P176 | 160 | 176 | 1306C-E87TAG3 |
| ZCDL-P200 | 180 | 200 | 1306C-E87TAG4 |
| ZCDL-P220 | 200 | 220 | 1306C-E87TAG6 |
ZCDL-P series---50Hz (220KW-600KW)
Powered by engines, high reliable and competitive price, matched with Italy Mecc Alte alternator-
--2 year no time limited warranty alternator
Genset Model List
Genset
Model
(50Hz) | Genset Power (KW) | Diesel Engine |
| Prime | Standby | Model |
| ZCDL-P240 | 220 | 240 | 1606A-E93TAG4 |
| ZCDL-P260 | 240 | 260 | 1606A-E93TAG5 |
| ZCDL-P308 | 280 | 308 | 2206A-E13TAG2 |
| ZCDL-P352 | 320 | 352 | 2206C-E13TAG3 |
| ZCDL-P400 | 360 | 400 | 2506A-E15TAG1 |
| ZCDL-P528 | 480 | 528 | 2806A-E18TAG1A |
| ZCDL-P572 | 520 | 572 | 2806A-E18TAG2 |
| ZCDL-P660 | 600 | 660 | 4006-23TAG2A |
ZCDL-P series---50Hz (640KW-1800KW)
Powered by engines, high reliable and competitive price, matched with Italy Mecc Alte alternator--
-2 year no time limited warranty alternator
Genset Model List
Genset
Model
(50Hz) | Genset Power (KW) | Diesel Engine |
| Prime | Standby | Model |
| ZCDL-P704 | 640 | 704 | 4006-23TAG3A |
| ZCDL-P800 | 720 | 800 | 4008-TAG1A |
| ZCDL-P880 | 800 | 880 | 4008-TAG2A |
| ZCDL-P1100 | 1000 | 1100 | 4012-46TWG2A |
| ZCDL-P1188 | 1080 | 1188 | 4012-46TWG3A |
| ZCDL-P1320 | 1200 | 1320 | 4012-46TAG2A |
| ZCDL-P1500 | 1365 | 1500 | 4012-46TAG3A |
| ZCDL-P1628 | 1480 | 1628 | 4016TAG1A |
| ZCDL-P1760 | 1600 | 1760 | 4016TAG2A |
| ZCDL-P2000 | 1800 | 2000 | 4016-61TRG3 |
>>
